CYLINDRICAL UV, VIS AND IR DIODE LASERS WITH USB INTERFACE

LDUS-R

CYLINDRICAL UV, VIS AND IR DIODE LASERS WITH USB INTERFACE
In stock
SKU
LDUS-R

Starting at $934.00

LDUS-R continuous-wave laser diode modules are designed for Research and OEM applications needing high beam quality and compact size. LDUS-R laser modules are only 0.63 inches in diamter and exceptionally easy to use due to their standard USB interface. These laser modules are available in a wide range of UV, Visible, and IR wavelengths and have either a round or elliptical beam shape. The LDUS-R is powered and controlled through its USB interface. Connecting via USB Micro Type B, the LDUS-R will work with modern USB 2.0 connections (or later standards). USB 1.0 will provide enough power for most LDUS-R lasers, however, the green, blue and violet lasers need a USB 2.0 connection. All models offer stable adjustable output power which can be operated through a downloadable graphical user interface.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Wavelength Range Delivery Price Add to cart
i
670nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 9mW
LDUS-670-9E-R
670nm
2-3 weeks
$1,134.00
Wavelength 670nm
Power 9mW
Laser Spot Dimensions at Exit (1/e2) 1.03x2.84mm

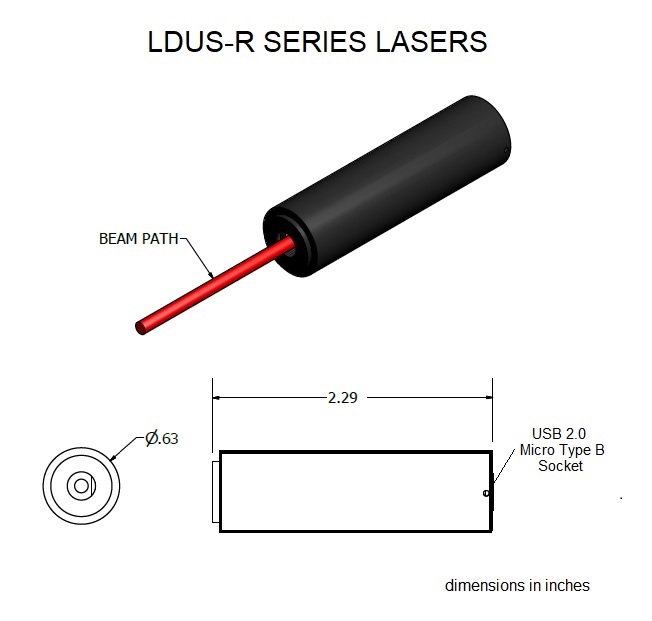

Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
690nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 31mW
LDUS-690-31E-R
690nm
2-3 weeks
$1,150.00
Wavelength 690nm
Power 31mW
Laser Spot Dimensions at Exit (1/e2) 1.10x2.45mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
705nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 35mW
LDUS-705-35E-R
705nm
2-3 weeks
$2,027.00
Wavelength 705nm
Power 35mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.32mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 110mW
LDUS-785-110E-R
785nm
2-3 weeks
$1,134.00
Wavelength 785nm
Power 110mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.06mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
808nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 130mW
LDUS-808-130E-R
808nm
2-3 weeks
$1,561.00
Wavelength 808nm
Power 130mW
Laser Spot Dimensions at Exit (1/e2) 1.03x2.06mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
940nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 300mW
LDUS-940-300E-R
940nm
2-3 weeks
$1,780.00
Wavelength 940nm
Power 300mW
Laser Spot Dimensions at Exit (1/e2) 1.28x3.58mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
515nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-515-5E-R
515nm
2-3 weeks
$1,431.00
Wavelength 515nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.30mm
Body Style Cylindrical, ?0.625in.
USB Power USB 2.x only
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
1064nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 100mW
LDUS-1064-100E-R
1064nm
2-3 weeks
$2,345.00
Wavelength 1064nm
Power 100mW
Laser Spot Dimensions at Exit (1/e2) 1.58x5.52mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
635nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 4.5mW
LDUS-635-4.5R-R
635nm
2-3 weeks
$1,231.00
Wavelength 635nm
Power 4.5mW
Laser Spot Dimensions at Exit (1/e2) 1.03x1.03mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
655nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-655-5E-R
655nm
2-3 weeks
$934.00
Wavelength 655nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.03x3.61mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
658nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 40mW
LDUS-658-40R-R
658nm
2-3 weeks
$1,880.00
Wavelength 658nm
Power 40mW
Laser Spot Dimensions at Exit (1/e2) 1.29x1.29mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
670nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-670-5E-R
670nm
2-3 weeks
$1,134.00
Wavelength 670nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.03x2.84mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
670nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 9mW
LDUS-670-9R-R
670nm
2-3 weeks
$1,351.00
Wavelength 670nm
Power 9mW
Laser Spot Dimensions at Exit (1/e2) 1.03x1.03mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
690nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 31mW
LDUS-690-31R-R
690nm
2-3 weeks
$1,452.00
Wavelength 690nm
Power 31mW
Laser Spot Dimensions at Exit (1/e2) 1.03x1.03mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-785-5E-R
785nm
2-3 weeks
$996.00
Wavelength 785nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.82mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 110mW
LDUS-785-110R-R
785nm
2-3 weeks
$1,909.00
Wavelength 785nm
Power 110mW
Laser Spot Dimensions at Exit (1/e2) 1.16x1.16mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
830nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 190mW
LDUS-830-190E-R
830nm
2-3 weeks
$1,346.00
Wavelength 830nm
Power 190mW
Laser Spot Dimensions at Exit (1/e2) 1.78x3.56mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
405nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-405-5E-R
405nm
2-3 weeks
$1,210.00
Wavelength 405nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.84x2.20mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail, Universal AC-DC Wall Transformer
i
980nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-980-5E-R
980nm
2-3 weeks
$1,085.00
Wavelength 980nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 2.76x5.90mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
515nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 25mW
LDUS-515-25E-R
515nm
2-3 weeks
$1,431.00
Wavelength 515nm
Power 25mW
Laser Spot Dimensions at Exit (1/e2) 0.73x2.30mm
Body Style Cylindrical, ?0.625in.
USB Power USB 2.x only
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
1310nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-1310-5E-R
1310nm
2-3 weeks
$1,282.00
Wavelength 1310nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 4.90x5.88mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
635nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 15mW
LDUS-635-15E-R
635nm
2-3 weeks
$1,342.00
Wavelength 635nm
Power 15mW
Laser Spot Dimensions at Exit (1/e2) 1.03x3.87mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
655nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 5mW
LDUS-655-5R-R
655nm
2-3 weeks
$1,213.00
Wavelength 655nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.23x1.23mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
660nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 115mW
LDUS-660-115E-R
660nm
2-3 weeks
$1,471.00
Wavelength 660nm
Power 115mW
Laser Spot Dimensions at Exit (1/e2) 1.29x2.19mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
670nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 5mW
LDUS-670-5R-R
670nm
2-3 weeks
$1,192.00
Wavelength 670nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.16x1.16mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
685nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 90mW
LDUS-685-90E-R
685nm
2-3 weeks
$1,453.00
Wavelength 685nm
Power 90mW
Laser Spot Dimensions at Exit (1/e2) 1.16x1.80mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
705nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-705-5E-R
705nm
2-3 weeks
$2,027.00
Wavelength 705nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.32mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 50mW
LDUS-785-50E-R
785nm
2-3 weeks
$1,134.00
Wavelength 785nm
Power 50mW
Laser Spot Dimensions at Exit (1/e2) 1.16x2.06mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
785nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 150mW
LDUS-785-150E-R
785nm
2-3 weeks
$1,769.00
Wavelength 785nm
Power 150mW
Laser Spot Dimensions at Exit (1/e2) mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
905nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 200mW
LDUS-905-200E-R
905nm
2-3 weeks
$2,041.00
Wavelength 905nm
Power 200mW
Laser Spot Dimensions at Exit (1/e2) 1.77x3.55mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
450nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-450-5E-R
450nm
2-3 weeks
$2,586.00
Wavelength 450nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 0.78x2.25mm
Body Style Cylindrical, ?0.625in.
USB Power USB 2.x only
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail, Universal AC-DC Wall Transformer
i
980nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 45mW
LDUS-980-45E-R
980nm
2-3 weeks
$1,085.00
Wavelength 980nm
Power 45mW
Laser Spot Dimensions at Exit (1/e2) 2.76x5.90mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
635nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 4.5mW
LDUS-635-4.5E-R
635nm
2-3 weeks
$1,097.00
Wavelength 635nm
Power 4.5mW
Laser Spot Dimensions at Exit (1/e2) mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3r
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
1550nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 5mW
LDUS-1550-5E-R
1550nm
2-3 weeks
$1,402.00
Wavelength 1550nm
Power 5mW
Laser Spot Dimensions at Exit (1/e2) 4.88x5.85mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
635nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 15mW
LDUS-635-15R-R
635nm
2-3 weeks
$1,930.00
Wavelength 635nm
Power 15mW
Laser Spot Dimensions at Exit (1/e2) 1.03x1.03mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
658nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 40mW
LDUS-658-40E-R
658nm
2-3 weeks
$1,282.00
Wavelength 658nm
Power 40mW
Laser Spot Dimensions at Exit (1/e2) 1.03x2.84mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer
i
660nm Diode Laser, Cylindrical Body, Round Beam, Output Power: 115mW
LDUS-660-115R-R
660nm
2-3 weeks
$1,859.00
Wavelength 660nm
Power 115mW
Laser Spot Dimensions at Exit (1/e2) 1.29x1.29mm
Body Style Cylindrical, ?0.625in.
USB Power USB 1.x or 2.x
CDRH Laser Safety Classification 3b
Beam Alignment to Body <5 Deg.
Operating Voltage 5VDC
Beam Focus Set at 5Ft. User Adjuatable
Contents of Box Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer

You must be logged in to ask questions

Click here to receive announcements and exclusive promotions

Remind me later

Thank you! Please check your email inbox to confirm.

Oops! Notifications are disabled.
