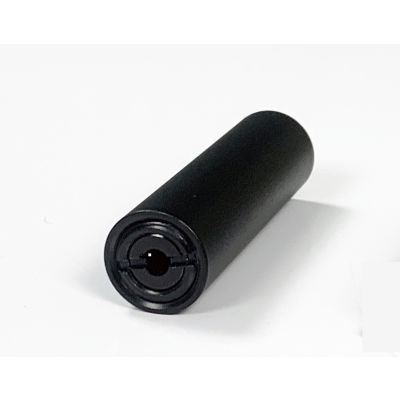

658nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 40mW
LDUS-658-40E-R
LDUS-R continuous-wave laser diode modules are designed for Research and OEM applications needing high beam quality and compact size. LDUS-R laser modules are only 0.63 inches in diamter and exceptionally easy to use due to their standard USB interface. These laser modules are available in a wide range of UV, Visible, and IR wavelengths and have either a round or elliptical beam shape. The LDUS-R is powered and controlled through its USB interface. Connecting via USB Micro Type B, the LDUS-R will work with modern USB 2.0 connections (or later standards). USB 1.0 will provide enough power for most LDUS-R lasers, however, the green, blue and violet lasers need a USB 2.0 connection. All models offer stable adjustable output power which can be operated through a downloadable graphical user interface.
◦ Easy-to-Use USB Interface for Power and Control
◦ User-focusable beam collimated by glass (not Plastic) aspheric lens
◦ Exceptionally compact envelope dimensions
◦ User-focusable beam collimated by glass (not Plastic) aspheric lens
◦ Exceptionally compact envelope dimensions
| Name | 658nm Diode Laser, Cylindrical Body, Elliptical Beam, Output Power: 40mW |
|---|---|
| Weight | 0.2500kgs |
| Standard Coatings Available | No |
| Attention | Power & Control Interface - USB 1.x or 2.x Micro Type B |
| Wavelength Range | 658nm |
| Wavelength | 658nm |
| Power | 40mW |
| Laser Spot Dimensions at Exit (1/e2) | 1.03x2.84mm |
| Body Style | Cylindrical, ?0.625in. |
| USB Power | USB 1.x or 2.x |
| CDRH Laser Safety Classification | 3b |
| Beam Alignment to Body | <5 Deg. |
| Operating Voltage | 5VDC |
| Beam Focus | Set at 5Ft. User Adjuatable |
| Contents of Box | Laser, Focus Adjustment Tool, USB A to USB mini Cable, USB Mini to Pigtail Cable, Universal AC-DC Wall Transformer |
In stock
SKU
LDUS-658-40E-R
$1,282.00
Customize product
LDUS-R continuous-wave laser diode modules are designed for Research and OEM applications needing high beam quality and compact size. LDUS-R laser modules are only 0.63 inches in diamter and exceptionally easy to use due to their standard USB interface. These laser modules are available in a wide range of UV, Visible, and IR wavelengths and have either a round or elliptical beam shape. The LDUS-R is powered and controlled through its USB interface. Connecting via USB Micro Type B, the LDUS-R will work with modern USB 2.0 connections (or later standards). USB 1.0 will provide enough power for most LDUS-R lasers, however, the green, blue and violet lasers need a USB 2.0 connection. All models offer stable adjustable output power which can be operated through a downloadable graphical user interface.
