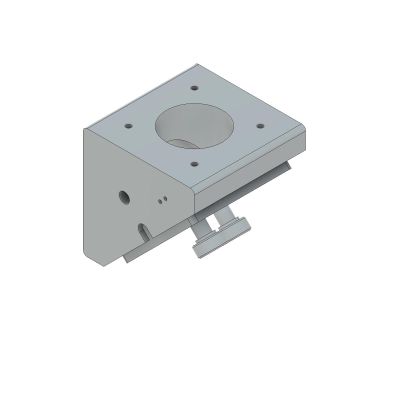

Cage 45-Degree Mirror Mount

C32-AMHS-30

A triangular mirror holder that can bend the rod and optical axis to 90 degrees. It can precisely adjust the angle of the mirror.
◦ The cage system has two types, P30 (Dia. 6mm rods, 30mm pitch between the rods) and P16 (Dia. 4mm rods, 16mm pitch between the rods).
◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
More Information
Name Cage 45-Degree Mirror Mount
Weight 0.2000kgs
Guide ▶ Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog.
▶ For consultation of optical system using cage system please contact Sales.
Attention ▶ If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶ Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶ When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (32x32mm)
Compatible Optics Diameter φ30mm
Compatible Optics Thickness 4 - 10mm
Clear Aperture φ27mm
Incident angle 45°
Adjustment Range /Tilt ±3°
Adjustment Range /Rotation ±3°
Resolution /Tilt 0.44°/rotation
Resolution /Rotation 0.44°/rotation
Number of Adjustment Axes 2 points
Out of stock
SKU
C32-AMHS-30
$209.00
A triangular mirror holder that can bend the rod and optical axis to 90 degrees. It can precisely adjust the angle of the mirror.
