Drivers

In stock

SKU

Drivers

Drivers List

Customize product

Filters

Remove all filters

Name Delivery Price Add to cart

details

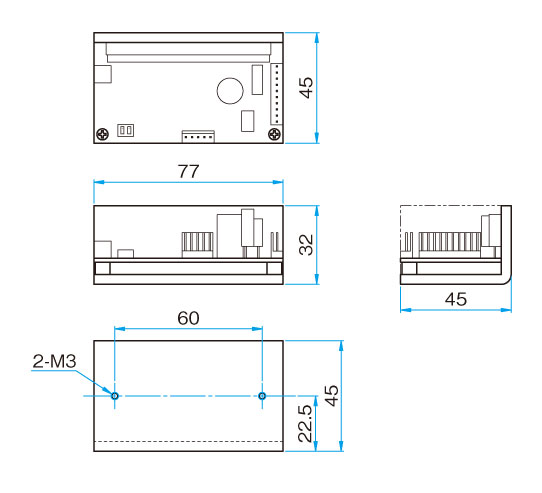

SG-5M

2 weeks

£133.77

Part Name	Compact Driver
Driving Motor	5-phase stepping motor
Drive System	Bipolar constant current pentagon drive
Driving Current	0.5 − 1.4A/phase
Excitation System	Micro-step
Number of Divisions	Two types (1, 2)
Input Signal	1 clock input method 2 clock input method
Input Logic	Photocoupler input
Max. Response Frequency	50kpps
Auto Current Down OFF Input	None
Motor Excitation OFF Input	Equipped
Micro-step Selection Input	None
Origin Excitation Timing Output	None
Input Voltage	DC20 - 40V 3A Max
Operating Temperature Range	0 − 40°C
External Dimensions	(W)77×(H)32×(D)45mm

details

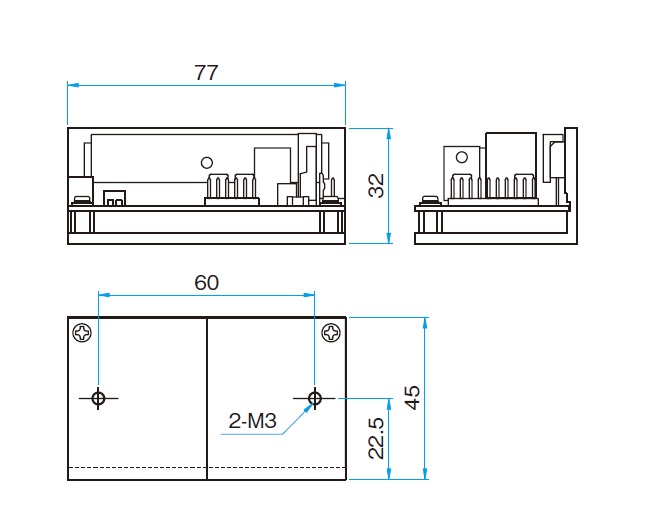

MC-5M

2 weeks

£154.37

Product Name	Compact Driver
Driving Motor	5-phase stepping motor
Drive System	Bipolar constant current pentagon drive
Driving Current	0.5 − 1.4A/phase
Excitation System	Full / Half step
Number of Divisions	Two types (1, 2)
Input Signal	1 clock input method 2 clock input method
Input Logic	Photocoupler input
Max. Response Frequency	50kpps
Auto Current Down OFF Input	None
Motor Excitation OFF Input	Equipped
Micro-step Selection Input	None
Origin Excitation Timing Output	None
Input Voltage	DC20 - 40V 3A Max
Operating Temperature Range	0 − 40°C
External Dimensions	(W)77×(H)32×(D)45mm

details

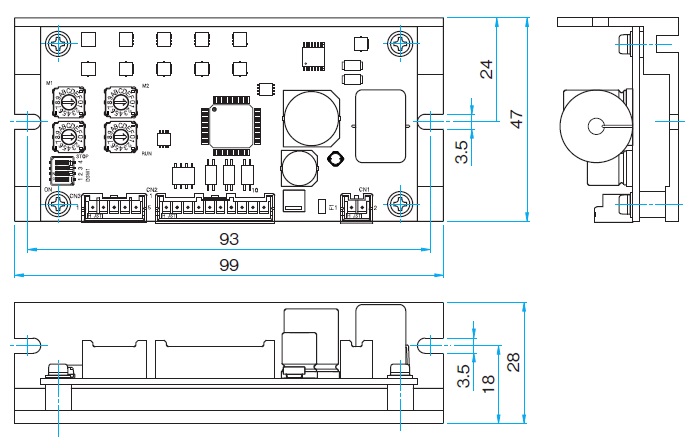

MC-S0514ZU

2 weeks

£267.56

Part Name	Compact Micro-step Driver
Driving Motor	5-phase stepping motor
Drive System	Bipolar constant current pentagon drive
Driving Current	0.35 − 1.4A/phase
Excitation System	Micro-step
Number of Divisions	1～250 16types(2 series) : 1，2，4，5，8，10，16，20，25，40，50，80，100，125，200，250 1～240 16types(3 series) : 1，2，3，6，12，18，24，32，36，48，60，72，120，160，180，240
Input Signal	1 clock input method 2 clock input method
Input Logic	Photocoupler input
Max. Response Frequency	500kpps
Auto Current Down OFF Input	None
Motor Excitation OFF Input	Equipped
Micro-step Selection Input	Switching by the number of division setting switch
Origin Excitation Timing Output	Equipped
Input Voltage	DC24V±5% 3A
Operating Temperature Range	0 − 40°C
External Dimensions	(W)99×(H)28×(D)47mm

details

SG-5MA

2 weeks

£133.77

Part Name	Compact Driver
Driving Motor	5-phase stepping motor
Drive System	Bipolar constant current pentagon drive
Driving Current	0.25 − 0.85A/phase
Excitation System	Full / Half step
Number of Divisions	Two types (1, 2)
Input Signal	1 clock input method 2 clock input method
Input Logic	Photocoupler input
Max. Response Frequency	50kpps
Auto Current Down OFF Input	None
Motor Excitation OFF Input	Equipped
Micro-step Selection Input	None
Origin Excitation Timing Output	None
Input Voltage	DC20 - 40V 1.5A Max
Operating Temperature Range	0 − 40°C
External Dimensions	(W)77×(H)32×(D)45mm

details

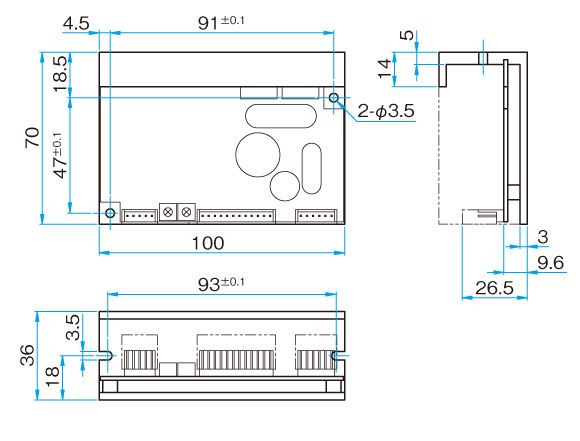

SG-514MSC

6-12 weeks

£201.18

Part Name	Micro-step Driver
Driving Motor	5-phase stepping motor
Drive System	Bipolar constant current pentagon drive
Driving Current	0.3 − 1.4A/phase
Excitation System	Micro-step
Number of Divisions	16 types (1, 2, 2.5, 5, 8, 10, 20, 25, 40, 50, 80, 100, 125, 200, 250)
Input Signal	2 clock input method
Input Logic	C-MOS equivalent negative logic input
Max. Response Frequency	500kpps
Auto Current Down OFF Input	None
Motor Excitation OFF Input	Equipped
Micro-step Selection Input	4 bit signal input
Origin Excitation Timing Output	Equipped
Input Voltage	For motor drive : DC24 − 36V ±10% 2A or lower For logic : DC5V ±5% 0.1A or lower
Operating Temperature Range	0 − 40°C
External Dimensions	(W)91×(H)36×(D)70mm
