Microfinished Vacuum-Compatible Mirror Mount

VMHG

In stock

SKU

VMHG

These low outgassing mirror mounts are machined with a micro-scale surface finish, making them easier to decontaminate, ideal for long-term high vacuum and ultra-violet environmental conditions.

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Name

Optic Loading Side

Angle Range

Optic Diameter

Delivery

Price

Add to cart

details

VMHG-12.7

Front Loading

±3°

φ12.7mm

2 weeks

₹44,195.00

Primary material	stainless(SUS316L)
Finish	None
Compatible Optics Diameter	φ12.7mm
Compatible Optics Thickness	3 - 7mm
Clear Aperture	φ11mm
Number of Adjustment Axes	2 points
Adjustment Range /Tilt	±3°
Adjustment Range /Rotation	±3°
Resolution /Tilt	about 0.3°/rotation
Resolution /Rotation	about 0.3°/rotation
Compatible Mounting Screw Number	VPCB-4-8 or VAGB-4-8

details

VMHG-50.8

Front Loading

φ50.8mm

2 weeks

₹73,656.00

Primary material	stainless(SUS316L)
Finish	None
Compatible Optics Diameter	φ50mm、φ50.8mm
Compatible Optics Thickness	3 - 10mm
Clear Aperture	φ47mm
Number of Adjustment Axes	2 points
Adjustment Range /Tilt	±2.5°
Adjustment Range /Rotation	±2.5°
Resolution /Tilt	about 0.26°/rotation
Resolution /Rotation	about 0.26°/rotation
Compatible Mounting Screw Number	VPCB-4-10 or VAGB-4-10

details

VMHG-12.7-NMT

±3°

φ12.7mm

6-12 weeks

₹258,493.00

Primary material	Titanium
Finish	None
Height optical axis	12.7 mm
Compatible Optics Thickness	3～7 mm
Clear aperture	φ11 mm
Number of Adjustment Axes	2
Adjustment Screw	M3×0.25 mm
Adjustment Range ( Tilt )	±3°
Adjustment Range ( Rotation )	±3°
Resolution ( Tilt )	About 0.3°/rotation
Resolution ( Rotation )	About 0.3°/rotation
Magnetic Field (Reference)	0.1 mG

details

VMHG-25.4

Front Loading

±3°

φ25.4mm

6-12 weeks

₹58,924.00

Primary material	stainless(SUS316L)
Finish	None
Compatible Optics Diameter	φ25.4mm/φ25mm
Compatible Optics Thickness	3 - 10mm
Clear Aperture	φ22.4mm
Number of Adjustment Axes	2 points
Adjustment Range /Tilt	±3°
Adjustment Range /Rotation	±3°
Resolution /Tilt	about 0.39°/rotation
Resolution /Rotation	about 0.39°/rotation
Compatible Mounting Screw Number	VPCB-4-10 or VAGB-4-10

details

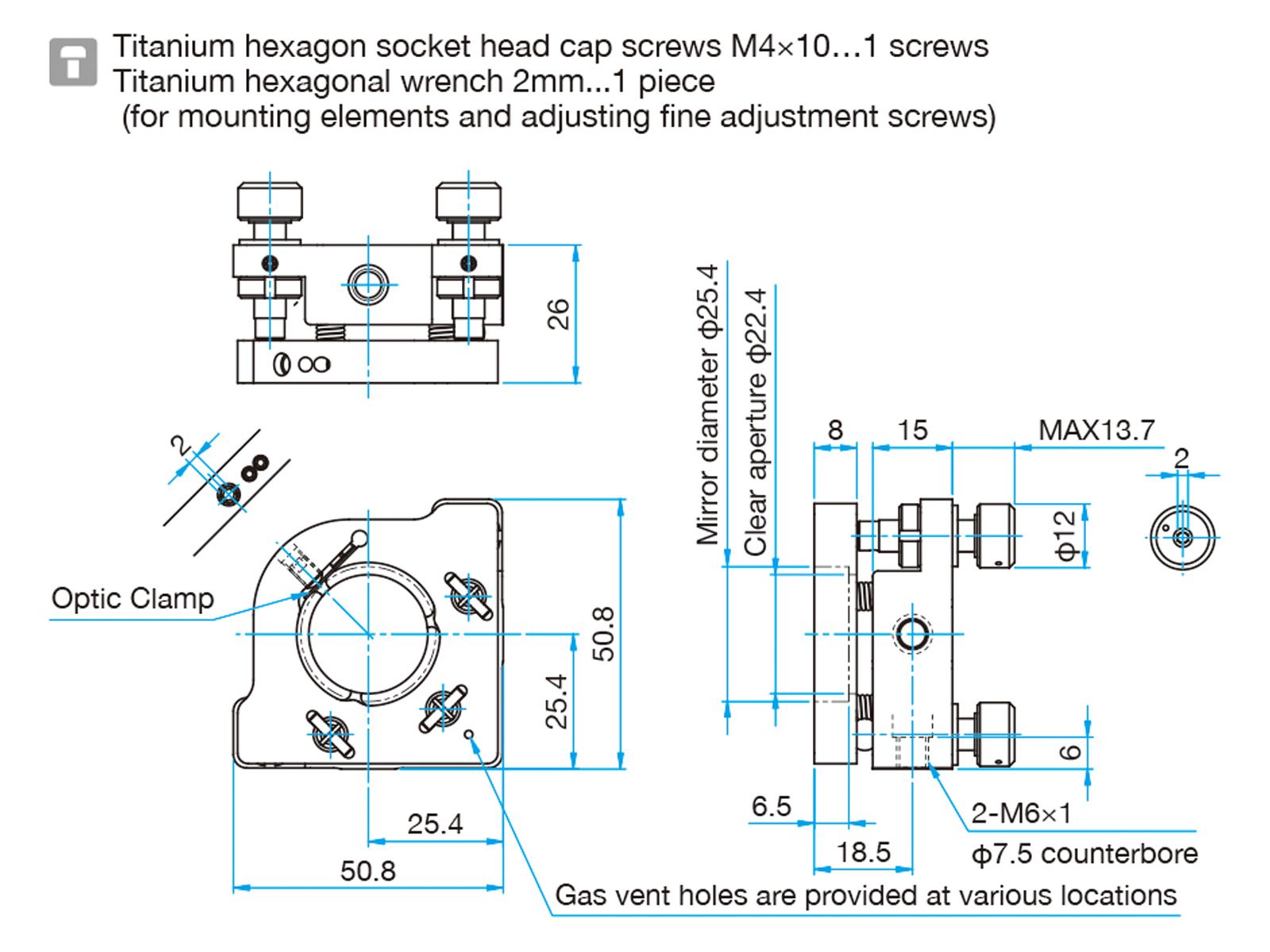

VMHG-25.4-NM

±3°

φ25.4mm

6-12 weeks

₹215,121.00

Primary material	stainless ( SUS316L )
Finish	None
Height optical axis	25.4 mm
Compatible Optics Diameter	φ25.4 mm, φ25 mm
Compatible Optics Thickness	3～10 mm
Clear aperture	φ22.4 mm
Number of Adjustment Axes	2
Adjustment Screw	M6×0.25 mm
Adjustment Range ( Tilt )	±3°
Adjustment Range ( Rotation )	±3°
Resolution ( Tilt )	About 0.39°/rotation
Resolution ( Rotation )	About 0.39°/rotation
Magnetic Field (Reference)	0.2 mG

details

VMHG-25.4-NMT

±3°

φ25.4mm

6-12 weeks

₹301,863.00

Primary material	Titanium
Finish	None
Height optical axis	25.4 mm
Compatible Optics Diameter	φ25.4 mm, φ25 mm
Compatible Optics Thickness	3～10 mm
Clear aperture	φ22.4 mm
Number of Adjustment Axes	2
Adjustment Screw	M6×0.25 mm
Adjustment Range ( Tilt )	±3°
Adjustment Range ( Rotation )	±3°
Resolution ( Tilt )	About 0.39°/rotation
Resolution ( Rotation )	About 0.39°/rotation
Magnetic Field (Reference)	0.1 mG

details

VMHG-30

Front Loading

±3°

φ30mm

2 weeks

₹58,924.00

Compatible Optics Diameter	φ30mm
Primary material	stainless(SUS316L)
Finish	None
Compatible Optics Thickness	3 - 10mm
Clear Aperture	φ27mm
Number of Adjustment Axes	2 points
Adjustment Range /Tilt	±3°
Adjustment Range /Rotation	±3°
Resolution /Tilt	about 0.39°/rotation
Resolution /Rotation	about 0.39°/rotation
Compatible Mounting Screw Number	VPCB-4-10 or VAGB-4-10

details

VMHG-12.7-NM

±3°

φ12.7mm

6-12 weeks

₹171,750.00

Primary material	stainless ( SUS316L )
Finish	None
Height optical axis	12.7 mm
Compatible Optics Thickness	3～7 mm
Clear aperture	φ11 mm
Number of Adjustment Axes	2
Adjustment Screw	M3×0.25 mm
Adjustment Range ( Tilt )	±3°
Adjustment Range ( Rotation )	±3°
Resolution ( Tilt )	About 0.3°/rotation
Resolution ( Rotation )	About 0.3°/rotation
Magnetic Field (Reference)	0.1 mG

You must be logged in to ask questions

◦ It also can be used in a UV optical system or in a clean room.
◦ Adjustment screws are removable (except for VMHG-12.7) so that it can remount other electric actuators for remote controll. (Actuators are not included.)
◦ To minimize the outgassing, venting hole and grooving are provided onto screw holes and inset sections.
◦ BARRIERTA SUPER IS/V grease is used for sliding part.
