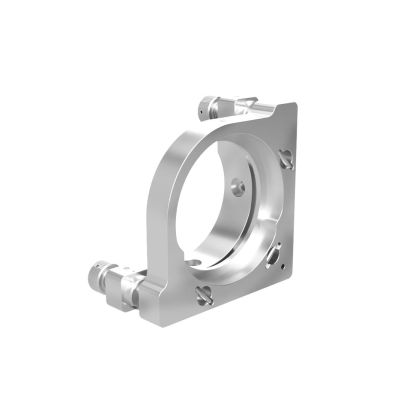

Vacuum Mirror Holder for 50.8mm Diameter Mirrors
VMHG-50.8
These are low outgassing mirror holders which are ideal for using in the high vacuum conditions.
◦ It also can be used in a UV optical system or in a clean room.
◦ Adjustment screws are removable (except for VMHG-12.7) so that it can remount other electric actuators for remote controll. (Actuators are not included.)
◦ To minimize the outgassing, venting hole and grooving are provided onto screw holes and inset sections.
◦ BARRIERTA SUPER IS/V grease is used for sliding part.
◦ Adjustment screws are removable (except for VMHG-12.7) so that it can remount other electric actuators for remote controll. (Actuators are not included.)
◦ To minimize the outgassing, venting hole and grooving are provided onto screw holes and inset sections.
◦ BARRIERTA SUPER IS/V grease is used for sliding part.
| Name | Vacuum Mirror Holder for 50.8mm Diameter Mirrors |
|---|---|
| Weight | 0.3500kgs |
| Guide |
|
| Attention |
|
| Image Label | Vacuum Mirror Holder for 50.8mm Diameter Mirrors |
| Compatible Optics Diameter | φ50mm、φ50.8mm |
| Compatible Optics Thickness | 3 - 10mm |
| Clear Aperture | φ47mm |
| Number of Adjustment Axes | 2 points |
| Adjustment Range /Tilt | ±2.5° |
| Adjustment Range /Rotation | ±2.5° |
| Resolution /Tilt | about 0.26°/rotation |
| Resolution /Rotation | about 0.26°/rotation |
In stock
SKU
VMHG-50.8
$735.00
Customize product
These are low outgassing mirror holders which are ideal for using in the high vacuum conditions.
