80X80mm Crossed-Roller Bearing, Aluminum, XY-Axis Stage, Center Micrometer, +/-7.5mm, M4 Threads

TAM-802C

3d-simple-product

Skip to the end of the images gallery

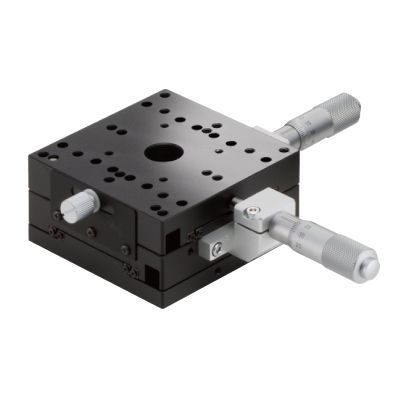

main product photo

Skip to the beginning of the images gallery

High precision crossed-roller linear translation stages with black anodized aluminum bodies.

More Information

More Information
Name	80X80mm Crossed-Roller Bearing, Aluminum, XY-Axis Stage, Center Micrometer, +/-7.5mm, M4 Threads
Weight	0.9000kgs
Guide	The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers. Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information. Note that based upon payload size, rated travel could be reduced.
Image Label	Aluminum Crossed Roller X Stage Size Center Drive Metric Threads
Stage Size	80×80mm
Travel	±7.5mm (±6.5mm for SDM and SWP)
Load Capacity	392N (40.0kg)
Mounting Thread	M4
Micrometer Position	Center
Lead of Actuator	0.5mm
Micrometer Readable Resolution	0.01mm

In stock

SKU

TAM-802C

₹68,147.20

High precision crossed-roller linear translation stages with black anodized aluminum bodies.
