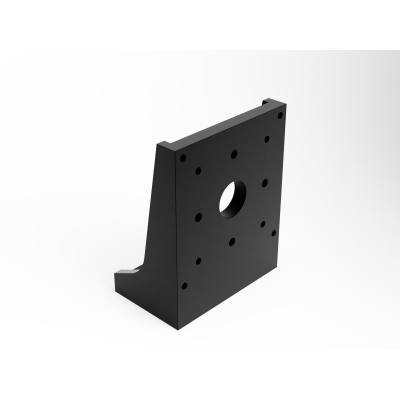

Metric Z bracket for 80mm stages
ZBR-8060
Bracket for mounting an X-axis stage at right angles to the mounting surface.
◦X-axis stages can be mounted vertically and used as a Z-axis stage.
◦If the X-axis stage is mounted vertically, attach the stage such that the micrometer head is on the underside.
◦The TSD-SZ series Z-axis stages can be mounted so that the micrometer head is on the topside.
◦If the X-axis stage is mounted vertically, attach the stage such that the micrometer head is on the underside.
◦The TSD-SZ series Z-axis stages can be mounted so that the micrometer head is on the topside.
| Name | Metric Z bracket for 80mm stages |
|---|---|
| Weight | 0.2800kgs |
| Guide |
|
| Attention | - |
| Image Label | Metric Z bracket for 80mm stages |
In stock
SKU
ZBR-8060
$65.00
Customize product
Bracket for mounting an X-axis stage at right angles to the mounting surface.
