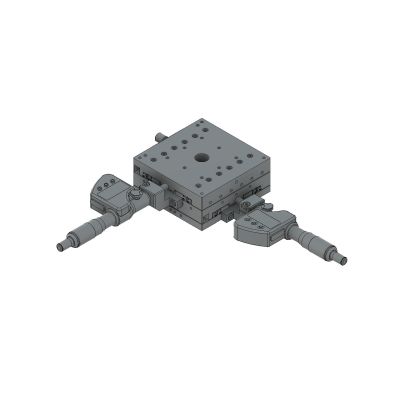

100X100mm Crossed-Roller Bearing, Aluminum, XY-Axis Stage, Center Digital Micrometer, +/-12.5mm, M4 Threads

TAM-1002CDG

High precision crossed-roller linear translation stages with black anodized aluminum bodies.

More Information
Name	100X100mm Crossed-Roller Bearing, Aluminum, XY-Axis Stage, Center Digital Micrometer, +/-12.5mm, M4 Threads
Weight	1.8000kgs
Guide	-
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information. Note that based upon payload size, rated travel could be reduced.
Image Label	Aluminum Crossed Roller X Stage Size Center Drive Metric Threads with Digital Micrometer
Stage Size	100×100mm
Travel	±12.5mm
Load Capacity	490N (50.0kg)
Mounting Thread	M4
Micrometer Position	Center
Lead of Actuator	0.5mm
Micrometer Readable Resolution	0.001mm

In stock

SKU

TAM-1002CDG

₹67,434.40

High precision crossed-roller linear translation stages with black anodized aluminum bodies.
