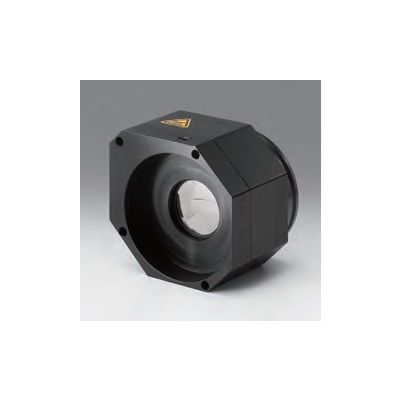

Electromagnetic Shutter for Olympus Microscopes Type 2 Unit 1
BSH2-RIX-2-1
Electromagnetic shutter systems for microscope illumination. Compatible with standard existing microscopes and are easy to install and remove. These shutter systems are best suited for microscopy such as multi-point time lapse microscopy and fluorescence microscopy.
◦A release shutter with the aperture size of φ25mm is utilized.
◦Both one axis and two axis controllers are available.
◦One axis controllers (SSH-C1RA-H) ,Two axis controllers (SSH-C2B) are available.
WEB Reference Catalog Code/W4120, WEB Reference Catalog Code/W4105
◦Both one axis and two axis controllers are available.
◦One axis controllers (SSH-C1RA-H) ,Two axis controllers (SSH-C2B) are available.
WEB Reference Catalog Code/W4120, WEB Reference Catalog Code/W4105
| Name | Electromagnetic Shutter for Olympus Microscopes Type 2 Unit 1 |
|---|---|
| Weight | 0.1000kgs |
| Guide | *1 Please check the model and connection type of your microscope.*2 These sets also come with a shutter connecting cable. (Extension cables are sold separately. Please contact our Sales Division for more information.)*3 No interface cable for connection with a PC is included. (Communication cables are sold separately. Please contact our Sales Division for more information.)*4 If your microscope is not listed, contact our Sales Division for your custom requirements. |
| Attention | - |
| Image Label | Electromagnetic Shutter for Olympus Microscopes Type 2 Unit 1 |
| Equipment Configuration |
Olympus IX71, IX81, IX73, IX83 (common to transmitted/epi-illumination) BX51, BX61, BX53, BX63, MVX10 (epi-illumination) |
| Shutter number | 1 unit |
| Controller Part Number | SSH-C2B |
In stock
SKU
BSH2-RIX-2-1
€1,568.60
Customize product
Electromagnetic shutter systems for microscope illumination. Compatible with standard existing microscopes and are easy to install and remove. These shutter systems are best suited for microscopy such as multi-point time lapse microscopy and fluorescence microscopy.
