Motorized XY stage system for upright microscope|BIOS-S series

Applicable to various microscopes using penetrated illumination (LED illumination) and epi-illumination.
Efficient in all sorts of sample inspections and image acquisitions.
Feedback control by built-in optical linear scale substantializes high accuracy in positioning.

bios-s
  • Applicable upright microscopes: Olympus BX51・BX61 Nikon 80i・50i・E600
  • Convert your existing manual stages into precisely-positioning motorized stages.

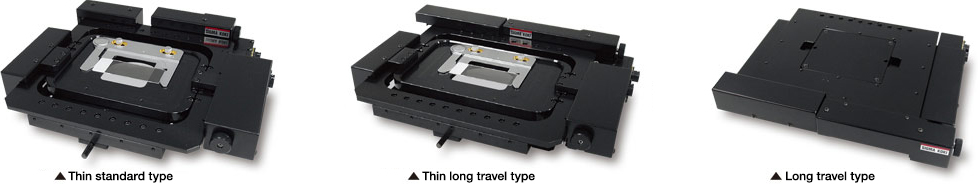

  • Thin Type and Thin Long Travel Type are available, considered space for illumination condenser lens.
Thin Standard type (Compatible microscopes: Olympus BX51, BX61 Nikon 80i, 50i, E600 Carl Zeiss Axioplan2)
Part Number Resolution[ µm ] Travel[ mm ] Stage Controller Joystick Controller Feedback function
BIOS-205S 0.1 30 (±15) FC-101G BJ-02G
BIOS-105S 0.1 SC-101G ×

Accessories: Adapter for microscope, exclusive spring clip

Thin long travel type (Compatible microscopes: Olympus BX51, BX61 Nikon 80i, 50i, E600 Carl Zeiss Axioplan2)
Part Number Resolution[ µm ] Travel[ mm ] Stage Controller Joystick Controller Feedback function
BIOS-235S 0.1 X-axis 60
Y-axis 30
FC-101G BJ-02G
BIOS-135S 0.1 SC-101G ×

Accessories: Adapter for microscope, exclusive spring clip

Long travel type (Compatible microscope: Olympus BX51 Nikon E600)
Part Number Resolution[ µm ] Travel[ mm ] Stage Controller Joystick Controller Feedback function
BIOS-415S 0.01 60 (±30) FC-501G BJ-02G
BIOS-215S 0.1 FC-101G
BIOS-115S 0.1 SC-101G ×

Accessories: Adapter for microscope, exclusive spring clip
* Please be aware of that occasional condenser inteference occurs.

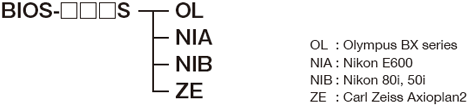

Option code

Bios-s Hyo
Guide

Please inform us of the maker and part number (model) of your existing microscope before purchase.

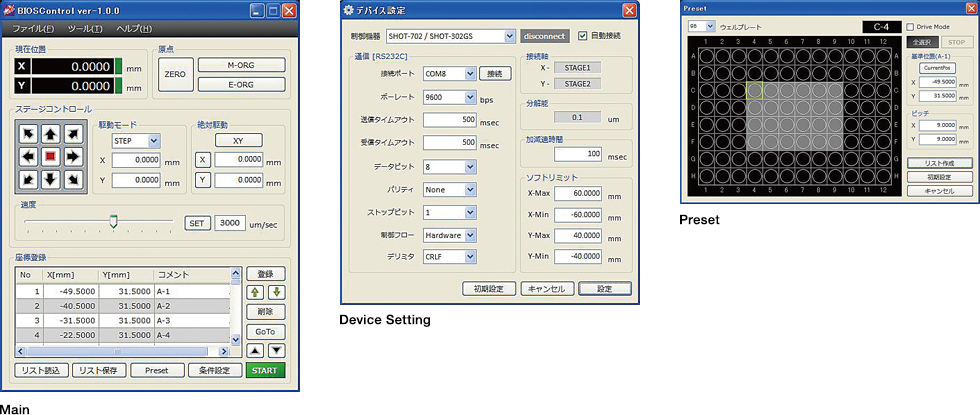

Sample Software for Simple Stage Control (BIOSControl)

Simple Stage Control
