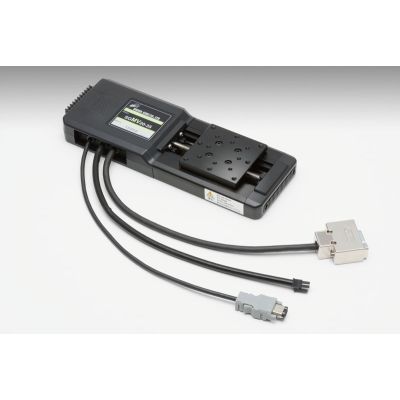

SGMV series Translation Motorized Stages - AC servo Motor
SGMV20-80(X)-0B
×
High precision/high stiffness stages driven by AC servo motor.
| Name | SGMV series Translation Motorized Stages - AC servo Motor |
|---|---|
| Weight | 1.0000kgs |
| Guide | - |
| Attention | - |
| Image Label | SGMV series Translation Motorized Stages - AC servo Motor |
| Travel | 80mm |
| Load Capacity | 80N (8.0kg) |
| Travel | 80mm |
| Stage Size | 60×60mm |
| Feed Screw | Ball screw diameter φ6mm、1mm lead |
| Positioning Slide | Outer rail structure |
| Stage Material | Aluminium |
| Finish | Black anodized |
| Resolution (Full) | 2μm/pulse |
| Resolution (Half) | 1μm/pulse |
| MAX Speed | 80mm/sec |
| Positioning Accuracy | 10μm |
| Positional Repeatability | 5μm |
| Load Capacity | 80N(8.0kgf) |
| Moment Stiffness / Pitch | 0.4″/N･cm |
| Moment Stiffness / Yaw | 0.25″/N･cm |
| Moment Stiffness / Roll | 0.35″/N･cm |
| Lost Motion | 2μm |
| Backlash | 2μm |
| Parallelism | 30μm |
| Running Parallelism | 10μm |
| Pitch | 30″ |
| Yaw | 25″ |
| Sensor Part Number | Micro photo sensor : PM-L25(SUNX Co., Ltd.) |
| Limit Sensor | Equipped (NORMAL CLOSE) |
| Origin Sensor | None |
| Proximity Origin Sensor | None |
In stock
SKU
SGMV20-80(X)-0B
$1,450.00
Customize product
High precision/high stiffness stages driven by AC servo motor.
