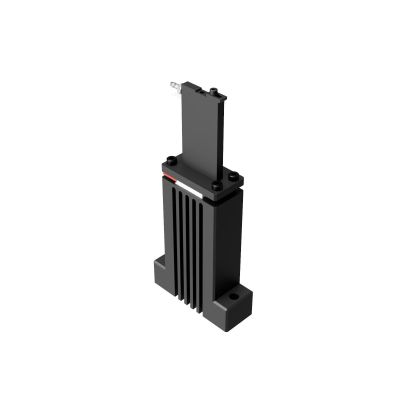

Sample Holder with Temperature Control 5 x 5 mm
TECH-5
5 x 5 mm Holders for setting or fixing samples such as waveguides.
Samples such as waveguides can be fixed by air suction or mechanical clamps.
Two types of compatible sample sizes are available: 5 x 5 mm and 10 x 10 mm.
This holder can be attached to various centering units (CEUT series).
| Name | Sample Holder with Temperature Control 5 x 5 mm |
|---|---|
| Weight | 0.2000kgs |
| Guide | Device holders (RTH, TECH series) are supplied with a vacuum suction tube (2m). By attaching to various centering units (CEUT series), position adjustment, sample temperature adjustment, and contact sensing with fiber arrays, etc. can be performed. For details, please refer to the various centering units (CEUT series) page. For sizes and shapes other than those listed here, please contact our sales department. |
| Attention | This product is a replacement device holder exclusively for the centering units (CEUT series). Please purchase the CEUT series centering unit for the first time. Please pay attention to the tightening force when fixing with the clamp screws. Excessive clamping may cause damage to the sample. A vacuum pump is required to use the suction mechanism. For recommended vacuum pumps, please refer to the "Vacuum Pumps" page of the product information. A separate Peltier controller is required to use the temperature control function. For recommended Peltier controllers and connection cables, please refer to the "Peltier Controllers" page of our product information. |
| Sample size | 5mm×5mm*1 |
| Sample fixation method | Adsorption (& mechanical clamps) |
| Temperature control | Supported |
| Temperature range | 10 - +60°C*2 |
| Peltier element | Imax:8.5A Vmax:4.4V |
| Thermistor Sensors | 103AT-4(10kΩ) (SEMITEC) |
| Primary material | Aluminum |
| Finish | Black anodized |
| Accessory | Accessory |
