Precision Beam Steering Assembly

BSRU

Precision Beam Steering Assembly
In stock
SKU
BSRU
Beam steering mounts are designed to easily and precisely change the height and direction of laser beams.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Delivery Price Add to cart
i
Precision Beam Steering Assembly for 30mm Mirror with Rod Length 177.8mm
BSRU-177
6-12 weeks
$898.00
Compatible Optics Diameter φ30mm
Compatible Optics Thickness 5mm
A 177.8mm
B 33 - 40mm
i
Precision Beam Steering Assembly for 30mm Mirror with Rod Length 355.6mm
BSRU-355
6-12 weeks
$949.00
Compatible Optics Diameter φ30mm
Compatible Optics Thickness 5mm
A 355.6mm
B 33 - 220mm

You must be logged in to ask questions

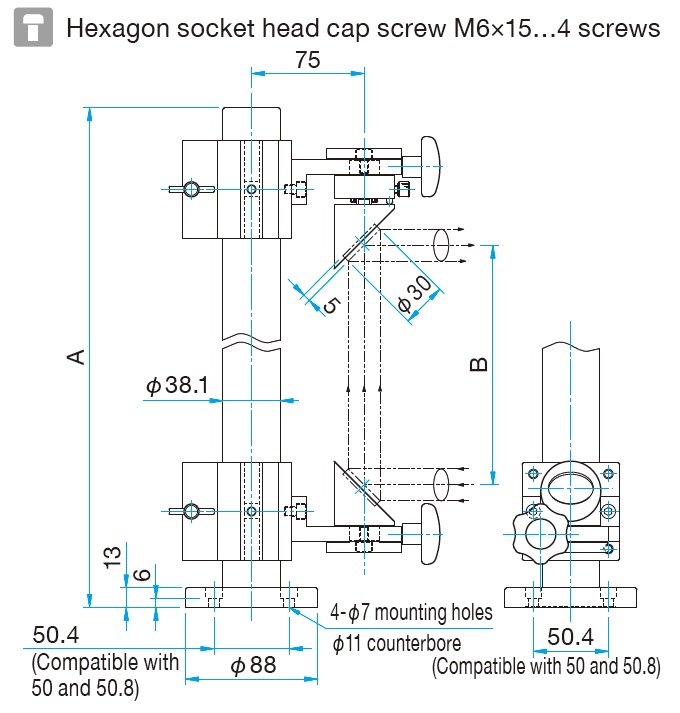

◦The φ38.1mm dampened pole, and two holders are sold as a set.
◦High stability is obtained from the damping properties of the poles and the rigidity of the holders.
◦Use the optional mirror (φ30mm, thickness 5mm) by bonding it to the holder.
◦The mirror holders can be coarsely adjusted 75 mm about the pole.
◦Adjustment screws are provided on the output side of the holders to tilt the mirror, and angle adjustment of the output beam can be performed.
