Compact Footprint, Horizontal Platform Vertical Travel Motor Stages

OSMS-ZF

Compact Footprint, Horizontal Platform Vertical Travel Motor Stages
In stock
SKU
OSMS-ZF
Z-axis stepping motor-driven stages for measurement and inspection, offering a small footprint while still maintaining high stiffness and high precision.
The mounting platform is oriented parallel to the base and is perpendicular to the direction of travel.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Travel Load Capacity Delivery Price Add to cart
i
Translation Motorized Stages, Flat Z axis - 5 Phase Stepping Motor
OSMS40-5ZF-0B
5mm 19.6N (2.0kg)
in stock
$977.00
Travel 5mm
Stage Size 40×40mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 1μm/pulse
Resolution (Half) 0.5μm/pulse
Minimum Incremental Motion (refurence) 0.1μm
MAX Speed 2mm/sec
Positional Repeatability 5μm
Load Capacity 19.6N(2.0kgf)
Moment Stiffness / Pitch 2″/N・cm
Moment Stiffness / Yaw 2″/N・cm
Moment Stiffness / Roll 1″/N・cm
Lost Motion 5μm
Parallelism 50μm
Running Parallelism 15μm
Pitch 25″
Sensor Part Number Micro photo sensor : PM-U25(SUNX Co., Ltd.) : Limit sensor
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor None
Proximity Origin Sensor None
i
Translation Motorized Stages, Flat Z axis - 5 Phase Stepping Motor
OSMS80-20ZF-0B
20mm 147N (15.0kg)
6-12 weeks
$1,660.00
Travel 20mm
Stage Size 80×80mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 0.2μm/pulse
Resolution (Half) 0.1μm/pulse
Minimum Incremental Motion (refurence) 0.05μm
MAX Speed 1mm/sec
Positional Repeatability 5μm
Load Capacity 147N(15.0kgf)
Moment Stiffness / Pitch 0.2″/N・cm
Moment Stiffness / Yaw 1″/N・cm
Moment Stiffness / Roll 1″/N・cm
Lost Motion 5μm
Parallelism 50μm
Running Parallelism 15μm
Pitch 25″
Sensor Part Number Micro photo sensor : PM-U25(SUNX Co., Ltd.) : Limit sensor
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor None
Proximity Origin Sensor None
i
Motorized Steel Linear Stage Vertical Flat Axis 60mm Size 5mm Travel
OSMS60-5ZF
5mm 39.2N (4.0kg)
2 weeks
$1,240.00
Travel 5mm
Stage Size 60×60mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 2μm/pulse
Resolution (Half) 1μm/pulse
Minimum Incremental Motion (refurence) 0.1μm
MAX Speed 4mm/sec
Positional Repeatability 5μm
Load Capacity 39.2N(4.0kgf)
Moment Stiffness / Pitch 0.4″/N・cm
Moment Stiffness / Yaw 1″/N・cm
Moment Stiffness / Roll 1″/N・cm
Lost Motion 5μm
Parallelism 50μm
Running Parallelism 15μm
Pitch 20″
Sensor Part Number Micro photo sensor : GP1S097HCZ0F(Sharp Corporation) : Limit sensor
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor None
Proximity Origin Sensor None
i

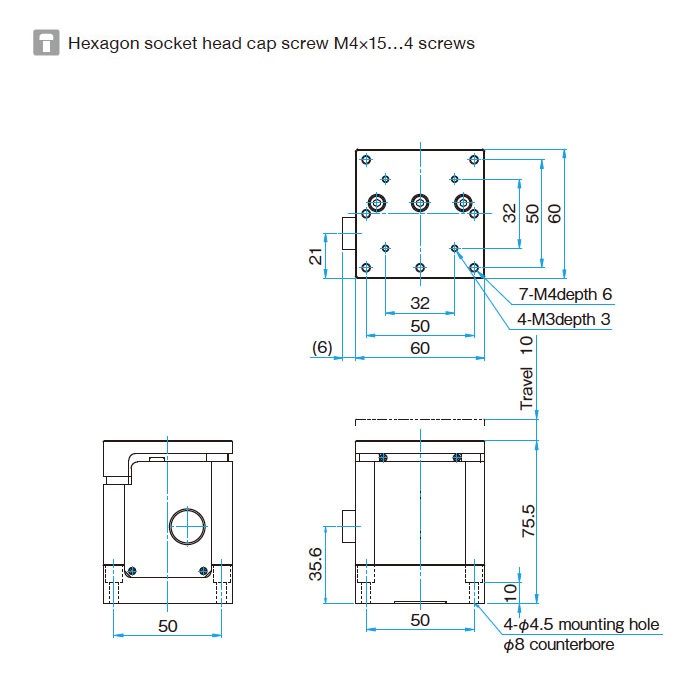

Motorized Steel Linear Stage Vertical Flat Axis 60mm Size 10mm Travel
OSMS60-10ZF
10mm 39.2N (4.0kg)
6-12 weeks
$1,345.00
Travel 10mm
Stage Size 60×60mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 2μm/pulse
Resolution (Half) 1μm/pulse
Minimum Incremental Motion (refurence) 0.1μm
MAX Speed 4mm/sec
Positional Repeatability 5μm
Load Capacity 39.2N(4.0kgf)
Moment Stiffness / Pitch 0.4″/N・cm
Moment Stiffness / Yaw 1″/N・cm
Moment Stiffness / Roll 1″/N・cm
Lost Motion 5μm
Parallelism 50μm
Running Parallelism 15μm
Pitch 20″
Sensor Part Number Micro photo sensor : GP1S097HCZ0F(Sharp Corporation) : Limit sensor
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor None
Proximity Origin Sensor None

You must be logged in to ask questions

◦Unconventional design incorporates a horizontal platform Z axis stage which mounts the motor in the main body to minimize footprint.
◦Minimized protrusions make these stages ideal for system assembly.
