In stock
SKU
HDS-YAW
Limited range high duty cycle rotation stage.
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Rotation Range | Load Capacity | Delivery | Price | Add to cart | |||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i
Motorized Rotation Stage High Accuracy 120mm Size
HDS-120YAW |
±6° | 98N (10.0kg) |
in stock
|
$2,705.00
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
|
i
Motorized Rotation Stage High Accuracy 60mm Size
HDS-60YAW |
±5° | 29.4N (3.0kg) |
in stock
|
$1,457.00
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
|
i

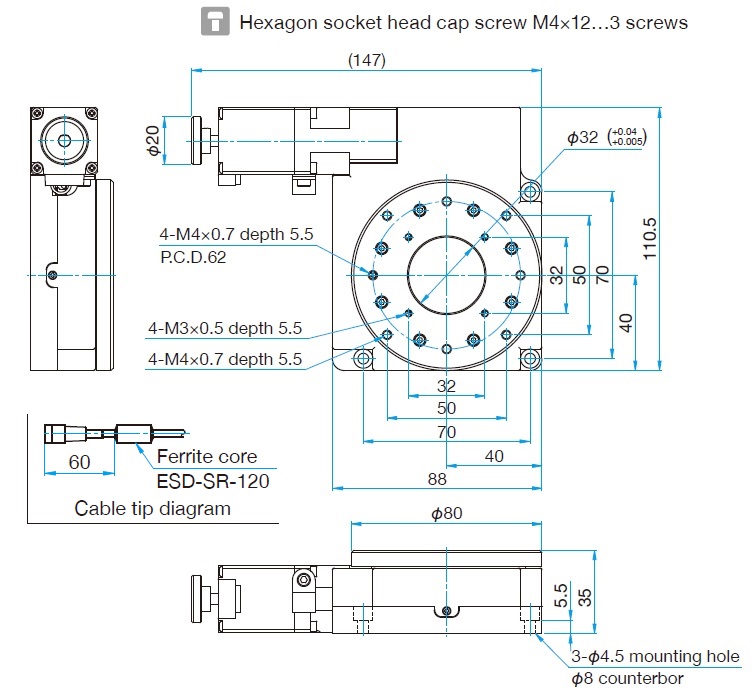

Motorized Rotation Stage High Accuracy 80mm Size
HDS-80YAW |
±5° | 58.8N (6.0kg) |
6-12 weeks
|
$2,081.00
|
|
|
You must be logged in to ask questions
◦Good for the automatic alignment devices which need to repeatedly adjust the angle of rotation by a small amount.
◦The ball screw system drive mechanism reduces abrasion and backlash for high durability.
◦Since it converts linear motion of the ball screw into rotational motion using a steel belt, the angular spped and resolutionis the same over the full range of travel.
◦The ball screw system drive mechanism reduces abrasion and backlash for high durability.
◦Since it converts linear motion of the ball screw into rotational motion using a steel belt, the angular spped and resolutionis the same over the full range of travel.
