Standard Series Translation Motorized Stage 1 Axis (X/Y)

OSMS-X

Standard Series Translation Motorized Stage 1 Axis (X/Y)
In stock
SKU
OSMS-X

Starting at $1,030.00

Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Travel Load Capacity Mounting Thread Delivery Price Add to cart
i

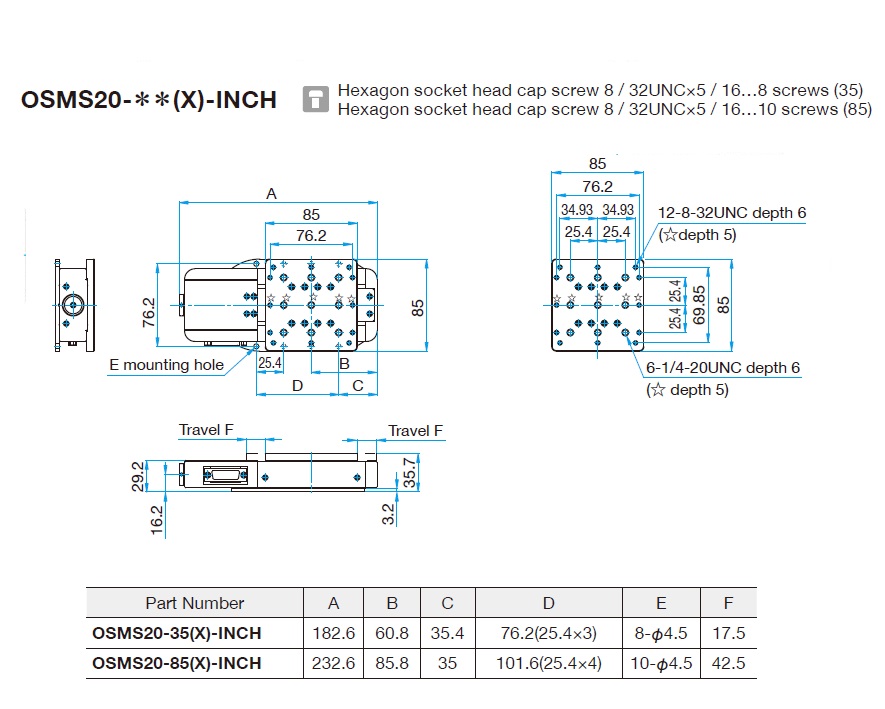

Motorized Single Axis Stage Enclosed Ball Screw Series 20 Travel 35mm Inch Thread
OSMS20-35(X)-INCH
35mm 78.4N (8.0kg)
6-12 weeks
$1,030.00
Travel 35mm
Stage Size 85×85mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 2μm/pulse
Resolution (Half) 1μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 25mm/sec
Positioning Accuracy 5μm
Positional Repeatability 3μm
Load Capacity 78.4N(8.0kgf)
Moment Stiffness / Pitch 0.4″/N・cm
Moment Stiffness / Yaw 0.25″/N・cm
Moment Stiffness / Roll 0.25″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 30μm
Running Parallelism 10μm
Pitch 30″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S097HCZ0F(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor None
i
Motorized Single Axis Stage Enclosed Ball Screw Series 20 Travel 85mm Inch Thread
OSMS20-85(X)-INCH
85mm 78.4N (8.0kg)
6-12 weeks
$1,135.00
Travel 85mm
Stage Size 85×85mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 2μm/pulse
Resolution (Half) 1μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 25mm/sec
Positioning Accuracy 10μm
Positional Repeatability 3μm
Load Capacity 78.4N(8.0kgf)
Moment Stiffness / Pitch 0.4″/N・cm
Moment Stiffness / Yaw 0.25″/N・cm
Moment Stiffness / Roll 0.35″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 30μm
Running Parallelism 10μm
Pitch 30″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 50mm Inch Thread
OSMS26-50(X)-INCH
50mm 117N (12.0kg)
6-12 weeks
$1,240.00
Travel 50mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 5μm
Positional Repeatability 3μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 25″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i

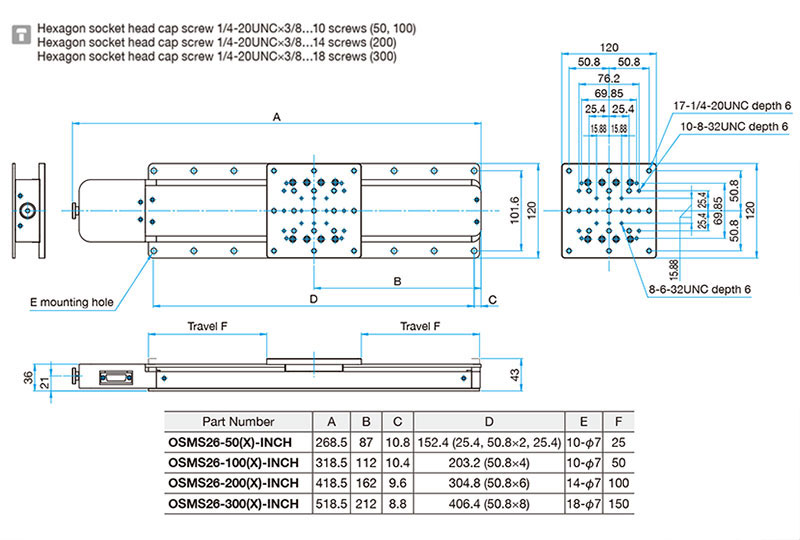

Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 100mm Inch Thread
OSMS26-100(X)-INCH
100mm 117N (12.0kg)
6-12 weeks
$1,345.00
Travel 100mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 10μm
Positional Repeatability 3μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 25″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 200mm Inch Thread
OSMS26-200(X)-INCH
200mm 117N (12.0kg)
in stock
$1,555.00
Travel 200mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 15μm
Positional Repeatability 6μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 300mm Inch Thread
OSMS26-300(X)-INCH
300mm 117N (12.0kg)
6-12 weeks
$1,765.00
Travel 300mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 15μm
Positional Repeatability 6μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 20μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 33 Travel 300mm Inch Thread
OSMS33-300(X)-INCH
300mm 196N (20.0kg)
6-12 weeks
$2,921.00
Travel 300mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ10mm、10mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 20μm/pulse
Resolution (Half) 10μm/pulse
Minimum Incremental Motion (refurence) 0.4μm
MAX Speed 120mm/sec
Positioning Accuracy 25μm
Positional Repeatability 6μm
Load Capacity 196N(20.0kgf)
Moment Stiffness / Pitch 0.12″/N・cm
Moment Stiffness / Yaw 0.08″/N・cm
Moment Stiffness / Roll 0.1″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 15μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 33 Travel 500mm Inch Thread
OSMS33-500(X)-INCH
500mm 196N (20.0kg)
6-12 weeks
$3,131.00
Travel 500mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ10mm、10mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 20μm/pulse
Resolution (Half) 10μm/pulse
Minimum Incremental Motion (refurence) 0.4μm
MAX Speed 120mm/sec
Positioning Accuracy 25μm
Positional Repeatability 6μm
Load Capacity 196N(20.0kgf)
Moment Stiffness / Pitch 0.12″/N・cm
Moment Stiffness / Yaw 0.08″/N・cm
Moment Stiffness / Roll 0.1″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 25μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 33 Travel 800mm 1/4-20 Thread
OSMS33-800(X)-INCH
800mm 196N (20.0kg) 1/4-20UNC
6-12 weeks
$5,151.00
Travel 800mm
Stage Platform Size 120x120mm
Feed Screw Ball screw diameter 10mm, 10mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 20um/pulse
Resolution (Half) 10um/pulse
Minimum Incremental Motion (refurence) 0.4um
MAX Speed 120mm/sec
Positioning Accuracy 25um
Positional Repeatability 6um
Load Capacity 196N(20.0kgf)
Moment Stiffness / Pitch 0.12arc-sec/N-cm
Moment Stiffness / Yaw 0.08arc-sec/N-cm
Moment Stiffness / Roll 0.1arc-sec/N-cm
Lost Motion 5um
Backlash 3um
Parallelism 50um
Running Parallelism 25um
Pitch 30arc-sec
Yaw 25arc-sec
Sensor Part Number Micro photo sensor : GP1S097HCZ0F(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
Motor Type 5-phase stepping motor 0.75A/phase, TS3667N43E967 (Tamagawa Seiki Co., Ltd.)
Step Angle 0.72 deg.
i

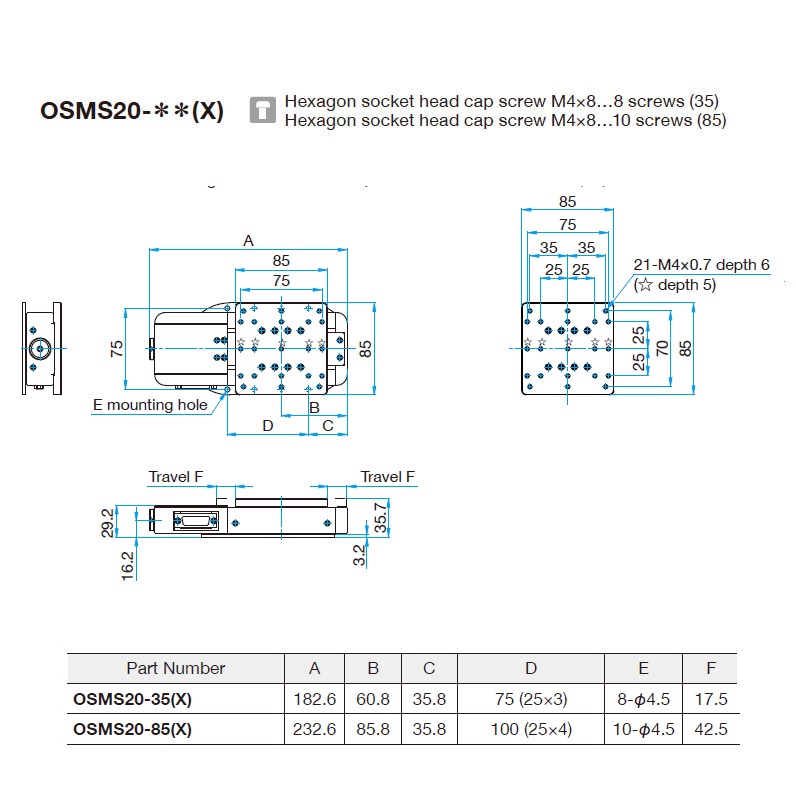

Motorized Single Axis Stage Enclosed Ball Screw Series 20 Travel 85mm M4 Thread
OSMS20-85(X)
85mm 78.4N (8.0kg)
6-12 weeks
$1,135.00
Travel 85mm
Stage Size 85×85mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 2μm/pulse
Resolution (Half) 1μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 25mm/sec
Positioning Accuracy 10μm
Positional Repeatability 3μm
Load Capacity 78.4N(8.0kgf)
Moment Stiffness / Pitch 0.4″/N・cm
Moment Stiffness / Yaw 0.25″/N・cm
Moment Stiffness / Roll 0.35″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 30μm
Running Parallelism 10μm
Pitch 30″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i

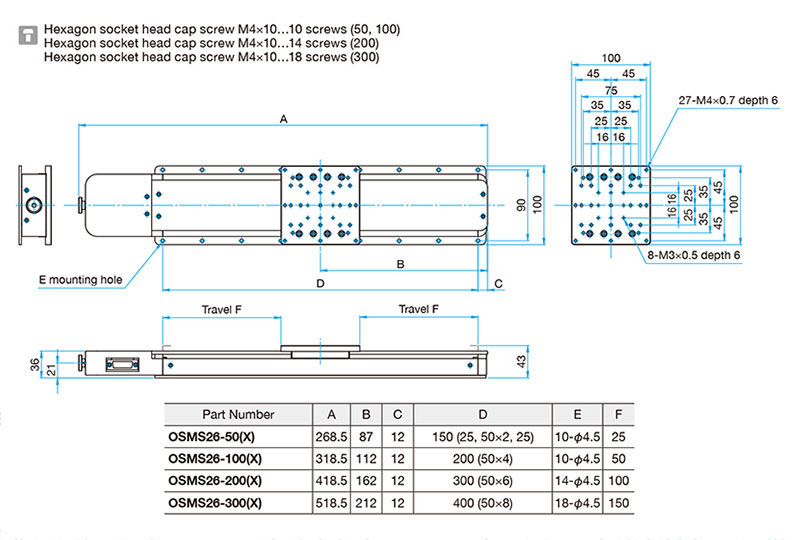

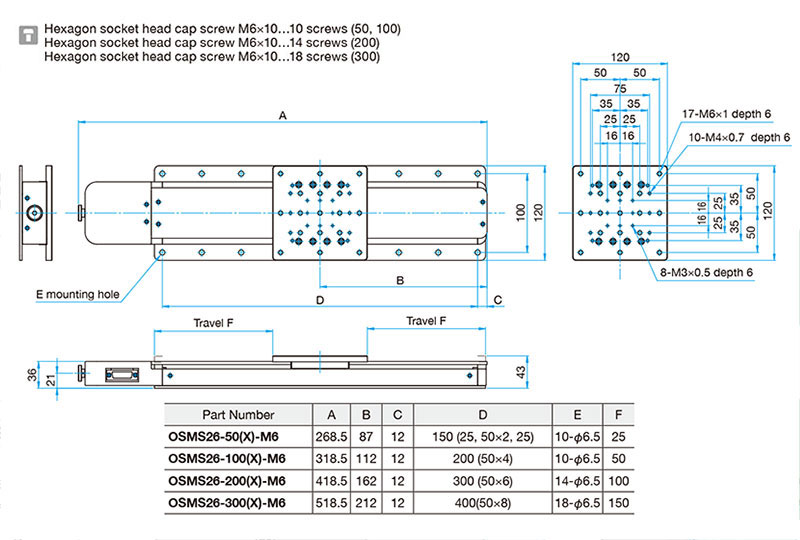

Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 50mm M4 Thread
OSMS26-50(X)
50mm 117N (12.0kg)
2 weeks
$1,240.00
Travel 50mm
Stage Size 100×100mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 5μm
Positional Repeatability 3μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 25″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 100mm M4 Thread
OSMS26-100(X)
100mm 117N (12.0kg)
2 weeks
$1,345.00
Travel 100mm
Stage Size 100×100mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 10μm
Positional Repeatability 3μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 25″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 200mm M4 Thread
OSMS26-200(X)
200mm 117N (12.0kg)
6-12 weeks
$1,555.00
Travel 200mm
Stage Size 100×100mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 15μm
Positional Repeatability 6μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 300mm M4 Thread
OSMS26-300(X)
300mm 117N (12.0kg)
2 weeks
$1,765.00
Travel 300mm
Stage Size 100×100mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 15μm
Positional Repeatability 6μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 20μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i

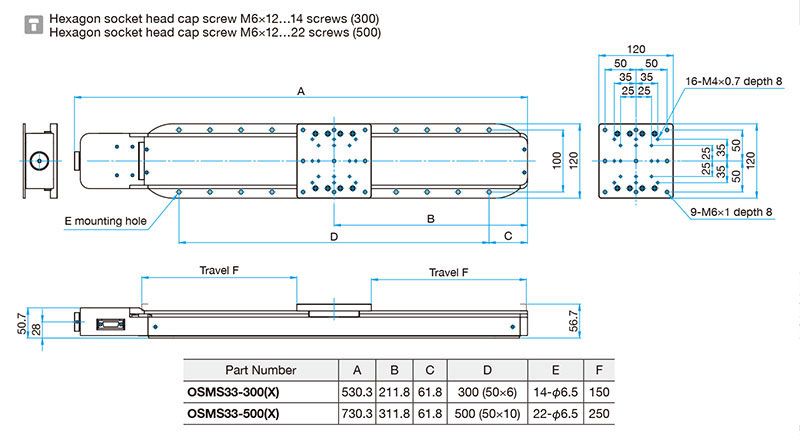

Motorized Single Axis Stage Enclosed Ball Screw Series 33 Travel 300mm M4 Thread
OSMS33-300(X)
300mm 196N (20.0kg)
2 weeks
$2,921.00
Travel 300mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ10mm、10mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 20μm/pulse
Resolution (Half) 10μm/pulse
Minimum Incremental Motion (refurence) 0.4μm
MAX Speed 120mm/sec
Positioning Accuracy 25μm
Positional Repeatability 6μm
Load Capacity 196N(20.0kgf)
Moment Stiffness / Pitch 0.12″/N・cm
Moment Stiffness / Yaw 0.08″/N・cm
Moment Stiffness / Roll 0.1″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 15μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 33 Travel 500mm M4 Thread
OSMS33-500(X)
500mm 196N (20.0kg)
2 weeks
$3,131.00
Travel 500mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ10mm、10mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 20μm/pulse
Resolution (Half) 10μm/pulse
Minimum Incremental Motion (refurence) 0.4μm
MAX Speed 120mm/sec
Positioning Accuracy 25μm
Positional Repeatability 6μm
Load Capacity 196N(20.0kgf)
Moment Stiffness / Pitch 0.12″/N・cm
Moment Stiffness / Yaw 0.08″/N・cm
Moment Stiffness / Roll 0.1″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 25μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 20 Travel 35mm M4 Thread
OSMS20-35(X)
35mm 78.4N (8.0kg)
2 weeks
$1,030.00
Travel 35mm
Stage Size 85×85mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 2μm/pulse
Resolution (Half) 1μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 25mm/sec
Positioning Accuracy 5μm
Positional Repeatability 3μm
Load Capacity 78.4N(8.0kgf)
Moment Stiffness / Pitch 0.4″/N・cm
Moment Stiffness / Yaw 0.25″/N・cm
Moment Stiffness / Roll 0.25″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 30μm
Running Parallelism 10μm
Pitch 30″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S097HCZ0F(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor None
i

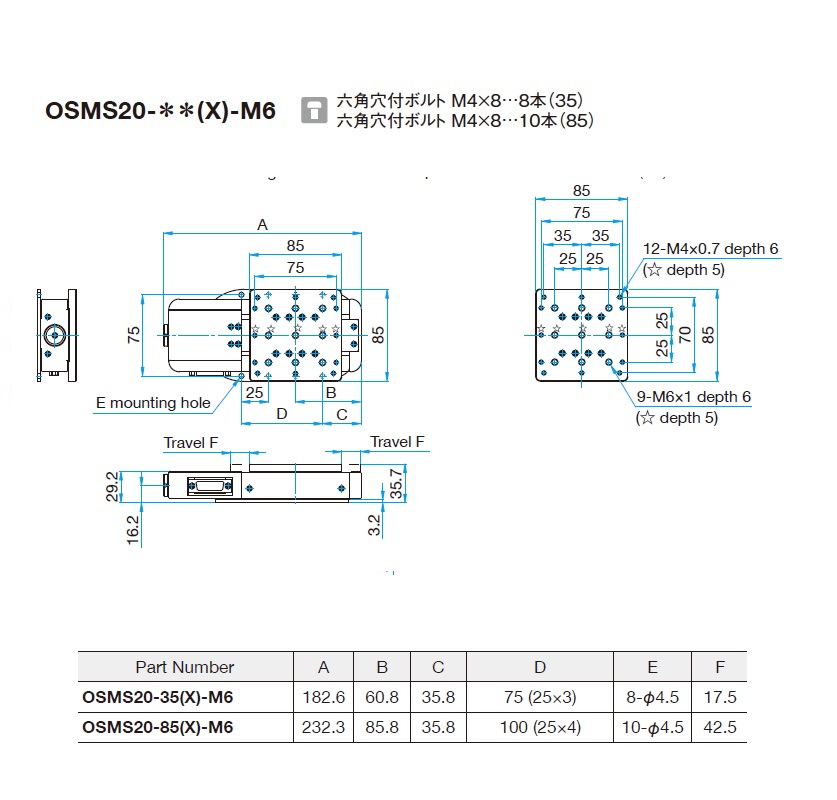

Motorized Single Axis Stage Enclosed Ball Screw Series 20 Travel 35mm M6 Thread
OSMS20-35(X)-M6
35mm 78.4N (8.0kg)
2 weeks
$1,030.00
Travel 35mm
Stage Size 85×85mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 2μm/pulse
Resolution (Half) 1μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 25mm/sec
Positioning Accuracy 5μm
Positional Repeatability 3μm
Load Capacity 78.4N(8.0kgf)
Moment Stiffness / Pitch 0.4″/N・cm
Moment Stiffness / Yaw 0.25″/N・cm
Moment Stiffness / Roll 0.25″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 30μm
Running Parallelism 10μm
Pitch 30″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S097HCZ0F(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor None
i
Motorized Single Axis Stage Enclosed Ball Screw Series 20 Travel 85mm M6 Thread
OSMS20-85(X)-M6
85mm 78.4N (8.0kg)
6-12 weeks
$1,135.00
Travel 85mm
Stage Size 85×85mm
Feed Screw Ball screw diameter φ6mm、1mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 2μm/pulse
Resolution (Half) 1μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 25mm/sec
Positioning Accuracy 10μm
Positional Repeatability 3μm
Load Capacity 78.4N(8.0kgf)
Moment Stiffness / Pitch 0.4″/N・cm
Moment Stiffness / Yaw 0.25″/N・cm
Moment Stiffness / Roll 0.35″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 30μm
Running Parallelism 10μm
Pitch 30″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 50mm M6 Thread
OSMS26-50(X)-M6
50mm 117N (12.0kg)
2 weeks
$1,240.00
Travel 50mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 5μm
Positional Repeatability 3μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 25″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 100mm M6 Thread
OSMS26-100(X)-M6
100mm 117N (12.0kg)
6-12 weeks
$1,345.00
Travel 100mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 10μm
Positional Repeatability 3μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 3μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 25″
Yaw 20″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 200mm M6 Thread
OSMS26-200(X)-M6
200mm 117N (12.0kg)
6-12 weeks
$1,555.00
Travel 200mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 15μm
Positional Repeatability 6μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 26 Travel 300mm M6 Thread
OSMS26-300(X)-M6
300mm 117N (12.0kg)
6-12 weeks
$1,765.00
Travel 300mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ8mm、2mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.2μm
MAX Speed 40mm/sec
Positioning Accuracy 15μm
Positional Repeatability 6μm
Load Capacity 117N(12.0kgf)
Moment Stiffness / Pitch 0.23″/N・cm
Moment Stiffness / Yaw 0.12″/N・cm
Moment Stiffness / Roll 0.2″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 20μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i

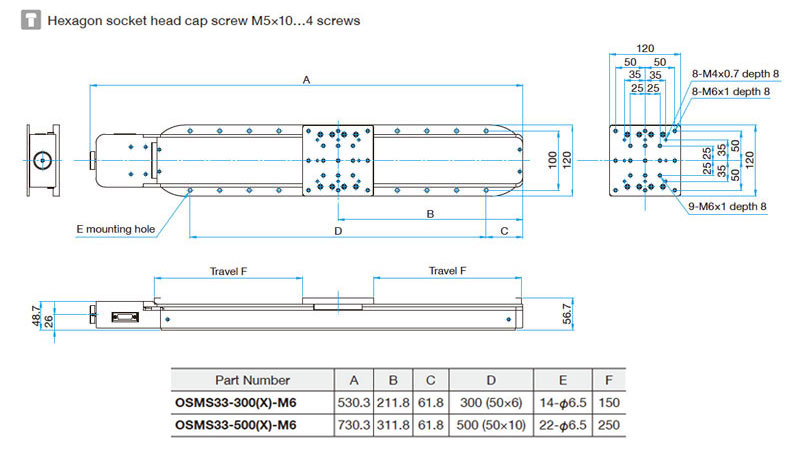

Motorized Single Axis Stage Enclosed Ball Screw Series 33 Travel 300mm M6 Thread
OSMS33-300(X)-M6
300mm 196N (20.0kg)
2 weeks
$2,921.00
Travel 300mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ10mm、10mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 20μm/pulse
Resolution (Half) 10μm/pulse
Minimum Incremental Motion (refurence) 0.4μm
MAX Speed 120mm/sec
Positioning Accuracy 25μm
Positional Repeatability 6μm
Load Capacity 196N(20.0kgf)
Moment Stiffness / Pitch 0.12″/N・cm
Moment Stiffness / Yaw 0.08″/N・cm
Moment Stiffness / Roll 0.1″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 15μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 33 Travel 500mm M6 Thread
OSMS33-500(X)-M6
500mm 196N (20.0kg)
2 weeks
$3,131.00
Travel 500mm
Stage Size 120×120mm
Feed Screw Ball screw diameter φ10mm、10mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 20μm/pulse
Resolution (Half) 10μm/pulse
Minimum Incremental Motion (refurence) 0.4μm
MAX Speed 120mm/sec
Positioning Accuracy 25μm
Positional Repeatability 6μm
Load Capacity 196N(20.0kgf)
Moment Stiffness / Pitch 0.12″/N・cm
Moment Stiffness / Yaw 0.08″/N・cm
Moment Stiffness / Roll 0.1″/N・cm
Lost Motion 5μm
Backlash 3μm
Parallelism 50μm
Running Parallelism 25μm
Pitch 30″
Yaw 25″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
i
Motorized Single Axis Stage Enclosed Ball Screw Series 33 Travel 800mm M6 Thread
OSMS33-800(X)-M6
800mm 196N (20.0kg) M6
6-12 weeks
$5,151.00
Travel 800mm
Stage Platform Size 120x120mm
Feed Screw Ball screw diameter 10mm, 10mm lead
Positioning Slide Outer rail structure
Stage Material Aluminium
Finish Black anodized
Resolution (Full) 20um/pulse
Resolution (Half) 10um/pulse
Minimum Incremental Motion (refurence) 0.4um
MAX Speed 120mm/sec
Positioning Accuracy 25um
Positional Repeatability 6um
Load Capacity 196N(20.0kgf)
Moment Stiffness / Pitch 0.12arc-sec/N-cm
Moment Stiffness / Yaw 0.08arc-sec/N-cm
Moment Stiffness / Roll 0.1arc-sec/N-cm
Lost Motion 5um
Backlash 3um
Parallelism 50um
Running Parallelism 25um
Pitch 30arc-sec
Yaw 25arc-sec
Sensor Part Number Micro photo sensor : GP1S097HCZ0F(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
Motor Type 5-phase stepping motor 0.75A/phase, TS3667N43E967 (Tamagawa Seiki Co., Ltd.)
Step Angle 0.72 deg.

You must be logged in to ask questions

◦U-shaped guide rail offers lightweight, and minimized deflection to achieve high stiffness.
◦Includes a compact scale built in while keeping the installation space the same as that of the equivalent open loop OSMS series.





Selection Guide for Stepper Motor Controllers

Groups

Description

Control Axis Options

Computer Interface Options

Micro Stepping

Min. / Max. Driving Speed

Additional Features

Relative Price

Standard Stepper Controllers

The GSC series controllers are our most cost-effective stepper controller and provide basic control for the 5-phase stepper motor actuators and stages. Half stepping is supported.



<
