In stock
SKU
SFS-OBL - SFAI-OBL
Objective lens actuators for upright inverted microscope employing piezo element actuator and digital sensor for feedback.
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Travel (at open-loop control) | Delivery | Price | Add to cart | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i
Piezo Flexure Objective Actuator for Inverted Style Microscope
SFAI-OBL-1R |
100μm±15% |
6-12 weeks
|
$3,870.00
|
|
|
||||||||||||||||||||||||
|
i

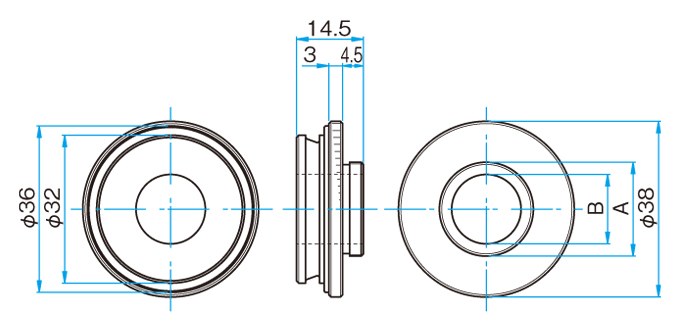

Adapter for Microscope side of Piezo Objective Actuators M25.0 Thread
OBL-ADP-M25.0A |
6-12 weeks
|
$161.00
|
|
|
|||||||||||||||||||||||||
|
i

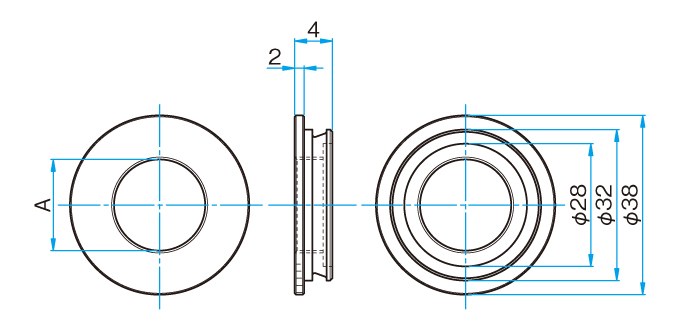

Adapter for Objective side of Piezo Objective Actuators M26.0 Thread
OBL-ADP-M26.0B |
2 weeks
|
$54.00
|
|
|
|||||||||||||||||||||||||
|
i
Adapter for Microscope side of Stepper Motor Objective Actuators M20.32 Thread
OBL-ADP3-M20.32A |
2 weeks
|
$161.00
|
|
|
|||||||||||||||||||||||||
|
i
Adapter for Objective side of Stepper Motor Objective Actuators M25.0 Thread
OBL-ADP3-M25.0B |
2 weeks
|
$54.00
|
|
|
|||||||||||||||||||||||||
|
i
Piezo Flexure Objective Actuator for Upright Style Microscope
SFS-OBL-1 |
100μm±15% |
6-12 weeks
|
$3,745.00
|
|
|
||||||||||||||||||||||||
|
i
Adapter for Microscope side of Piezo Objective Actuators M20.32 Thread
OBL-ADP-M20.32A |
2 weeks
|
$161.00
|
|
|
|||||||||||||||||||||||||
|
i
Adapter for Objective side of Piezo Objective Actuators M25.0 Thread
OBL-ADP-M25.0B |
2 weeks
|
$54.00
|
|
|
|||||||||||||||||||||||||
|
i
Adapter for Objective side of Stepper Motor Objective Actuators M20.32 Thread
OBL-ADP3-M20.32B |
6-12 weeks
|
$54.00
|
|
|
|||||||||||||||||||||||||
|
i
Adapter for Microscope side of Stepper Motor Objective Actuators M26.0 Thread
OBL-ADP3-M26.0A |
2 weeks
|
$161.00
|
|
|
|||||||||||||||||||||||||
|
i

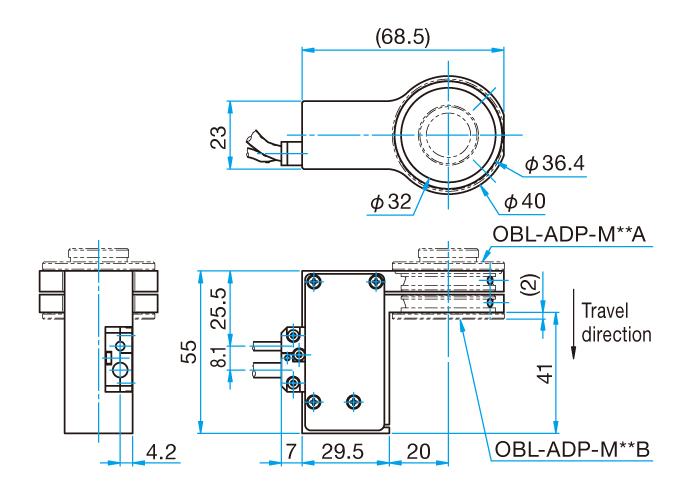

Piezo Flexure Objective Actuator for Upright Style Microscope High Humidity
SFS-OBL-2 |
100μm±15% |
6-12 weeks
|
$3,954.00
|
|
|
||||||||||||||||||||||||
|
i
Adapter for Objective side of Piezo Objective Actuators M20.32 Thread
OBL-ADP-M20.32B |
2 weeks
|
$54.00
|
|
|
|||||||||||||||||||||||||
|
i
Adapter for Microscope side of Piezo Objective Actuators M26.0 Thread
OBL-ADP-M26.0A |
2 weeks
|
$161.00
|
|
|
|||||||||||||||||||||||||
|
i
Adapter for Microscope side of Stepper Motor Objective Actuators M25.0 Thread
OBL-ADP3-M25.0A |
2 weeks
|
$161.00
|
|
|
|||||||||||||||||||||||||
|
i
Adapter for Objective side of Stepper Motor Objective Actuators M26.0 Thread
OBL-ADP3-M26.0B |
2 weeks
|
$54.00
|
|
|
You must be logged in to ask questions
◦Compact package for smooth integration into existing microscopes.
◦Designed for high-speed, high-resolution positioning.
◦Open loop travel is 100μm, closed loop travel is 80μm. Compared to the open-loop control, the maximum travel of closedloop control will be less about 10%.
◦Each model can be installed on a variety of upright or inverted microscopes. Thread inserts make it easy to integrate with different manufacturer's standard threads.
◦As in the case of the Sigma fine stage series, these actuators can be driven with the controller (FINE-01γ/503(CL)). Recommended controllers are the FINE series controllers.
◦Designed for high-speed, high-resolution positioning.
◦Open loop travel is 100μm, closed loop travel is 80μm. Compared to the open-loop control, the maximum travel of closedloop control will be less about 10%.
◦Each model can be installed on a variety of upright or inverted microscopes. Thread inserts make it easy to integrate with different manufacturer's standard threads.
◦As in the case of the Sigma fine stage series, these actuators can be driven with the controller (FINE-01γ/503(CL)). Recommended controllers are the FINE series controllers.
