PVT
PVT has uniform micrometers vent hole and can adsorb a sample reducing warp or deflection of the sample. PVT is suitable to fix a thin substrate such as semiconductor, glass, film or sheet.

Customize product
Filters
Enabled filters :
Remove all filters
Attention ▶ Vacuum pump or vacuum pump select switch are not included.
Guide
▶ Please contact us for custom size table, additional pins for positioning, screws for paralleling or any other customization are needed.
▶ Please contact us when a vacuum pump or a vacuum release unit are needed.
Name | Delivery | Price | Add to cart | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
details

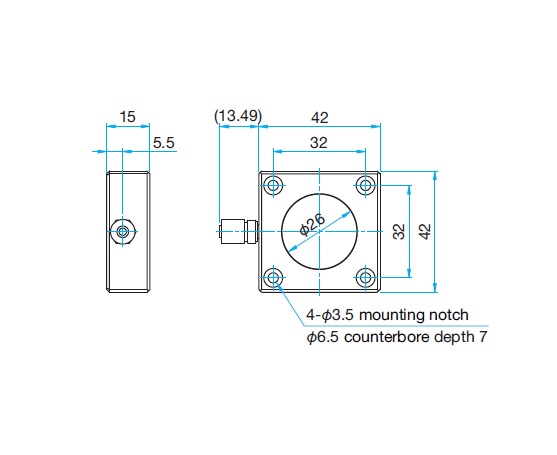

PVT40-25.4
|
2 weeks
|
$1,009.00
|
|
![]() |
||||||||||||
details

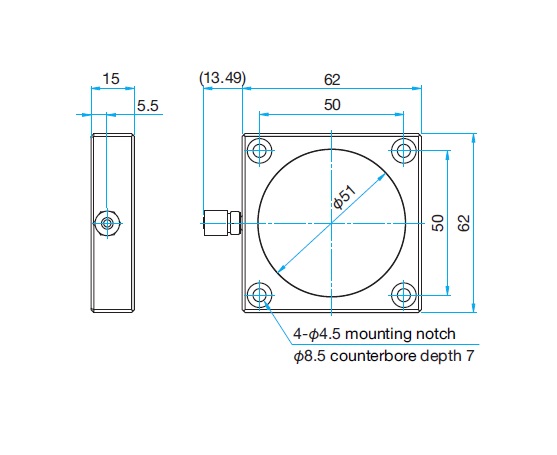

PVT60-50.8
|
2 weeks
|
$1,030.00
|
|
![]() |
||||||||||||
details

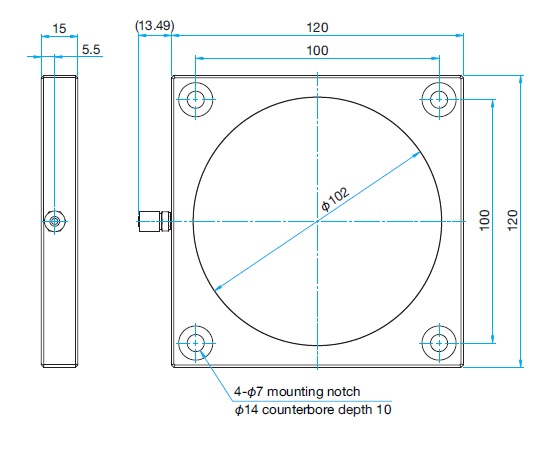

PVT120-101.6
|
2 weeks
|
$1,418.00
|
|
![]() |
You must be logged in to ask questions
◦PVT is made of granite and is lightweight and precise configuration.
◦External vacuum source is required. Adsorption power depends on the vacuum source.
◦External vacuum source is required. Adsorption power depends on the vacuum source.
