These mirror mounts have a gimbal mechanism and are ideal for tight spacers due to their thin design and vertically accessible adjustment. Holders can be positioned close to each other reducing optical system size.

Customize product
Filters
Enabled filters :
Remove all filters
Name | Diameter | Delivery | Price | Add to cart | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
i

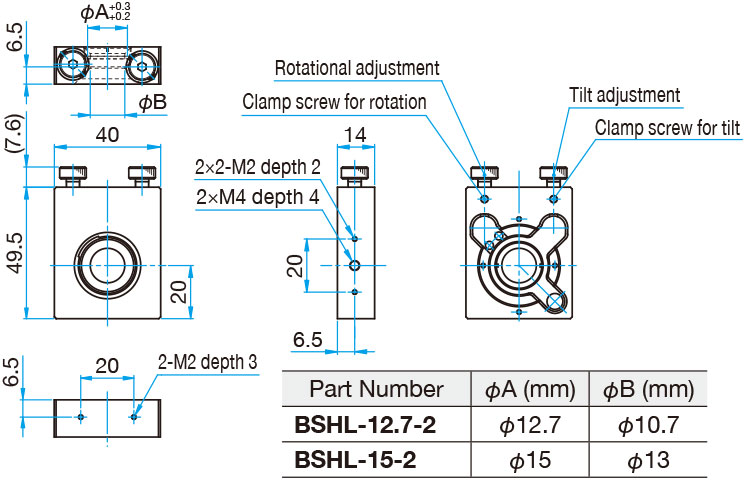

Vertical Control Gimballed Beamsplitter Holder with Knobs for 12.7mm Optic
BSHL-12.7-2 |
12.7mm |
in stock
|
$214.00
|
|
![]() |
||||||||||||||||||
i
Vertical Control Gimballed Beamsplitter Holder with Knobs for 25.4mm Optic
BSHL-25.4-2 |
25.4mm |
in stock
|
$224.00
|
|
![]() |
||||||||||||||||||
i
Vertical Control Gimballed Beamsplitter Holder with Knobs for 50.8mm Optic
BSHL-50.8-2 |
50.8mm |
2 weeks
|
$326.00
|
|
![]() |
||||||||||||||||||
i

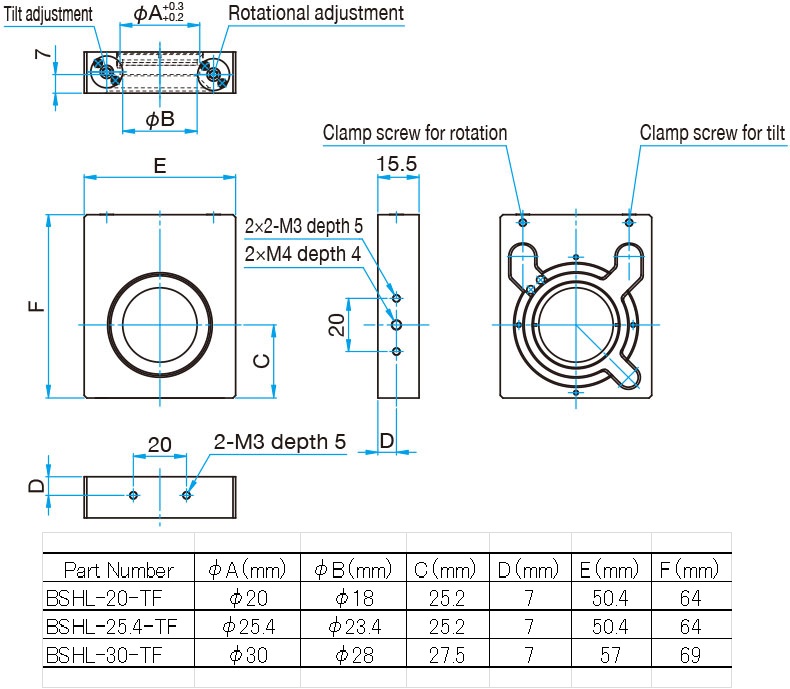

Vertical Control Gimballed Beamsplitter Holder for 20mm Optic
BSHL-20-TF |
20mm |
2 weeks
|
$224.00
|
|
![]() |
||||||||||||||||||
i

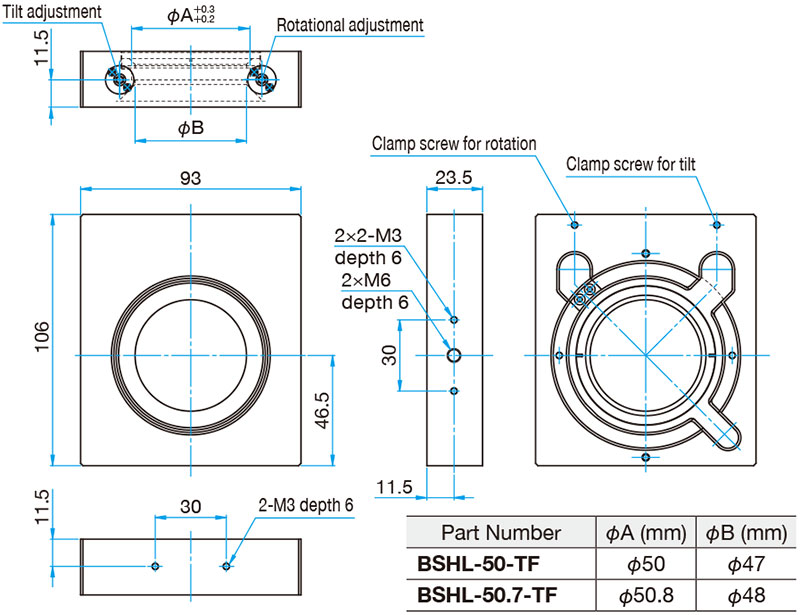

Vertical Control Gimballed Beamsplitter Holder for 50mm Optic
BSHL-50-TF |
50mm |
2 weeks
|
$326.00
|
|
![]() |
||||||||||||||||||
i
Vertical Control Gimballed Beamsplitter Holder with Knobs for 15mm Optic
BSHL-15-2 |
15mm |
2 weeks
|
$214.00
|
|
![]() |
||||||||||||||||||
i
Vertical Control Gimballed Beamsplitter Holder with Knobs for 30mm Optic
BSHL-30-2 |
30mm |
in stock
|
$252.00
|
|
![]() |
||||||||||||||||||
i

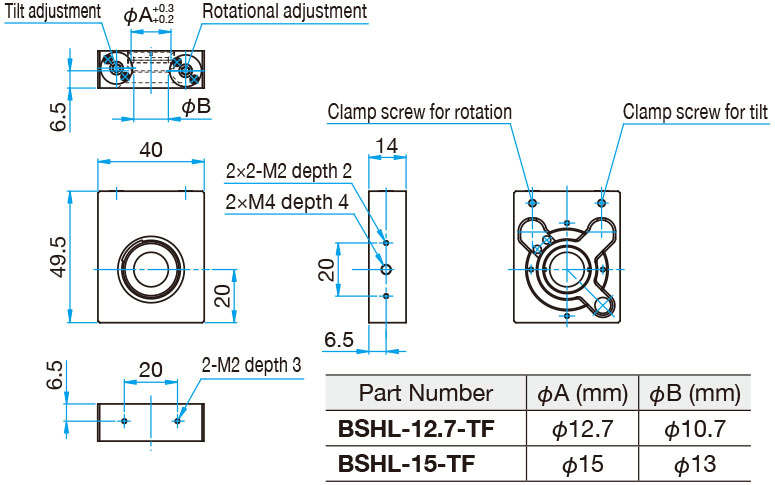

Vertical Control Gimballed Beamsplitter Holder for 12.7mm Optic
BSHL-12.7-TF |
12.7mm |
in stock
|
$214.00
|
|
![]() |
||||||||||||||||||
i
Vertical Control Gimballed Beamsplitter Holder for 25.4mm Optic
BSHL-25.4-TF |
25.4mm |
in stock
|
$224.00
|
|
![]() |
||||||||||||||||||
i
Vertical Control Gimballed Beamsplitter Holder for 50.8mm Optic
BSHL-50.8-TF |
50.8mm |
in stock
|
$326.00
|
|
![]() |
||||||||||||||||||
i

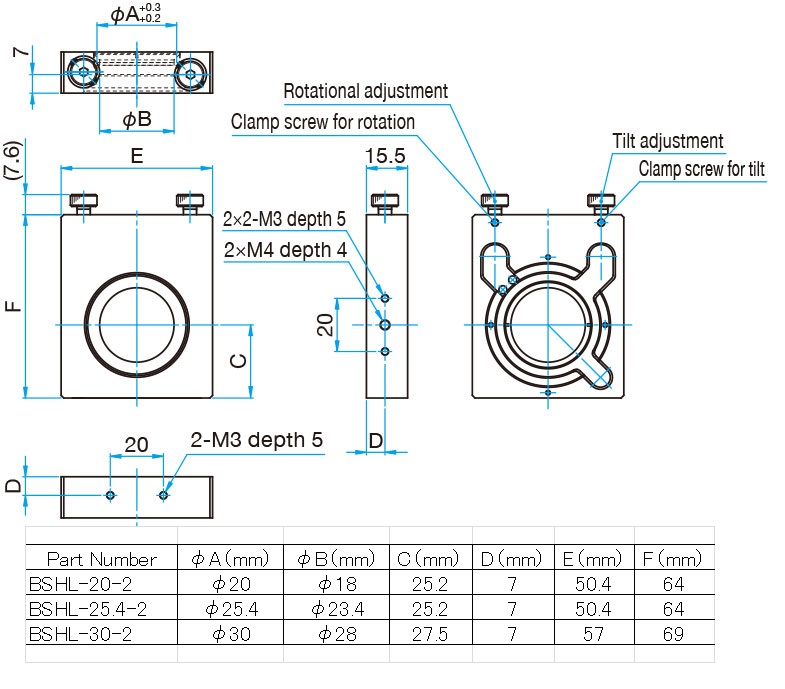

Vertical Control Gimballed Beamsplitter Holder with Knobs for 20mm Optic
BSHL-20-2 |
20mm |
2 weeks
|
$224.00
|
|
![]() |
||||||||||||||||||
i

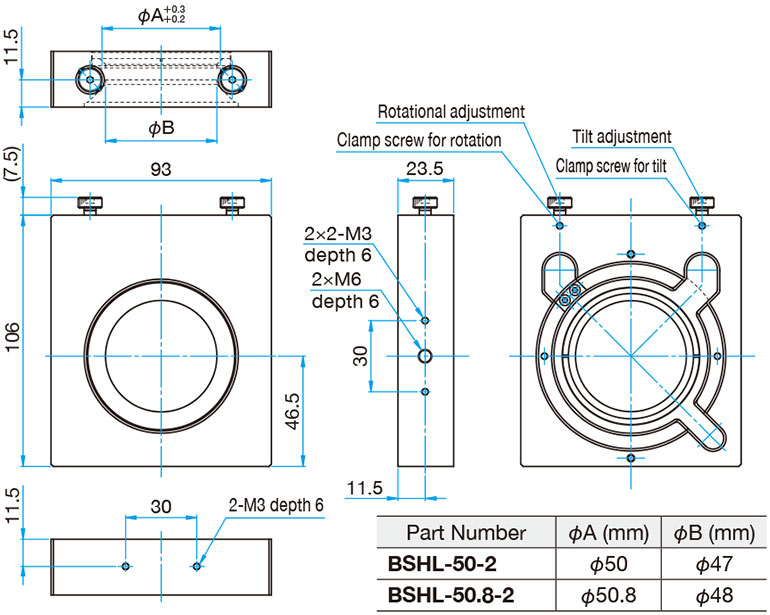

Vertical Control Gimballed Beamsplitter Holder with Knobs for 50mm Optic
BSHL-50-2 |
50mm |
2 weeks
|
$326.00
|
|
![]() |
||||||||||||||||||
i
Vertical Control Gimballed Beamsplitter Holder for 15mm Optic
BSHL-15-TF |
15mm |
2 weeks
|
$214.00
|
|
![]() |
||||||||||||||||||
i
Vertical Control Gimballed Beamsplitter Holder for 30mm Optic
BSHL-30-TF |
30mm |
2 weeks
|
$252.00
|
|
![]() |
You must be logged in to ask questions
◦There are two types, one is fitted with knobs on top (BSHL-2), and the other is without knobs and adjusted by hex wrench (BSHL-TF).
◦This product provides large clear aperture of transmitted beam even if beamsplitter is placed at 45 degrees.
◦The gimbal design maintains the center position of mirror even when fine adjusted.
◦Adjustment screws can be fixed with the clamp screws on the back of the mounts.
◦Two M4 mounting holes are also provided on both sides to mount the holder horizontally.
◦This product provides large clear aperture of transmitted beam even if beamsplitter is placed at 45 degrees.
◦The gimbal design maintains the center position of mirror even when fine adjusted.
◦Adjustment screws can be fixed with the clamp screws on the back of the mounts.
◦Two M4 mounting holes are also provided on both sides to mount the holder horizontally.
