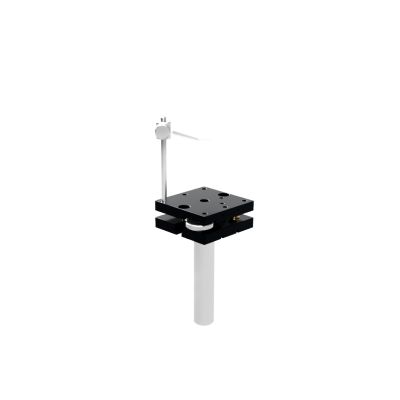

Sample Holder with 40mm Table

SHA-40RO

Skip to the beginning of the images gallery

Holders for mounting samples with indefinite shape and prisms, cube beamsplitters, etc.
Convenient for setting optical axis of samples because it is fitted with a simple tilt adjustment mechanism.

Details

◦The sample can be fixed without putting a load on it because spring clips are used to hold the sample.
◦Samples can be held at desired height if within the height specification range of the spring clip.
◦Samples can also be fixed with screws, using mounting holes on the table surface. (SHA-40, SHA-60)

More Information

More Information
Name	Sample Holder with 40mm Table
Weight	0.1300kgs
Guide	Prism holders (KKD) fitted with rotational fine adjustment are also available. (WEB Reference Catalog Code/W7111) Post length can be changed. If the length of post is specified at the time of purchase, this product will be delivered after replacing posts.
Attention	After adjustment, if the strut of the spring clip is lifted, the prism table sometimes moves, throwing off adjustment of tilt. Use without touching the strut after adjustment. Since the pressure of a spring clip is weak, samples may come out in an environment subjected to impact or vibration.
Image Label	Sample Holder with 40mm Table
Table Size	□40mm
Compatible Sample Height	0 - 35mm
Adjustment Range Tilt	±2°

In stock

SKU

SHA-40RO

$234.00

Holders for mounting samples with indefinite shape and prisms, cube beamsplitters, etc.
Convenient for setting optical axis of samples because it is fitted with a simple tilt adjustment mechanism.
