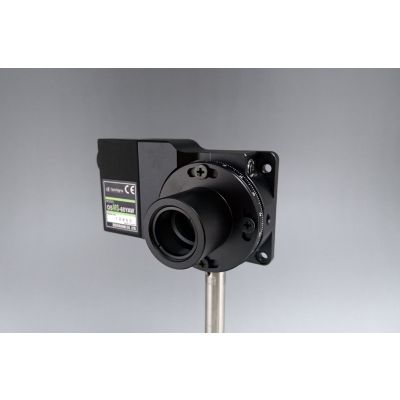

Motorized Polarizing Prism Holder (17mm-25mm Thickness)
OSMS-60-GTPC-25.4-1
Automatically rotating the polarizing prism (25.4mm outer diameter).
Confirming the size of polarizing prism to ensure proper selection of adapter.
Utilizing our OSMS-60YAW motorized rotation stage to realize high accuracy rotation alignment.
Confirming the size of polarizing prism to ensure proper selection of adapter.
Utilizing our OSMS-60YAW motorized rotation stage to realize high accuracy rotation alignment.
◦Can be operated with our controller.
| Name | Motorized Polarizing Prism Holder (17mm-25mm Thickness) |
|---|---|
| Weight | 0.5600kgs |
| Guide | - |
| Attention | - |
| Diameter | 25.4mm |
| Composition | OSMS-60YAW + OSMS-60-GHD-25.4-1 + RO-12-60 |
| Compatible Optics Diameter | φ25.4mm |
| Compatible Optics Thickness | 17 - 24.5mm |
| Rotation Range | Move in the counterclockwise CCW direction to ∞, and stop at near 0 degree (−2.5°) in the clockwise CW direction. |
| Resolution | (Full)0.005°/pulse, (Half)0.0025°/pulse |
| MAX Speed | 30°/sec |
| Compatible Controller | GSC-01, GSC-02, SHOT-702, GIP-101, SHOT-302GS, SHOT-304GS, HIT-M, HIT-S, PGC-04-U, HSC-103 |
| Compatible Cable | D15RP-CA |
In stock
SKU
OSMS-60-GTPC-25.4-1
$1,169.00
