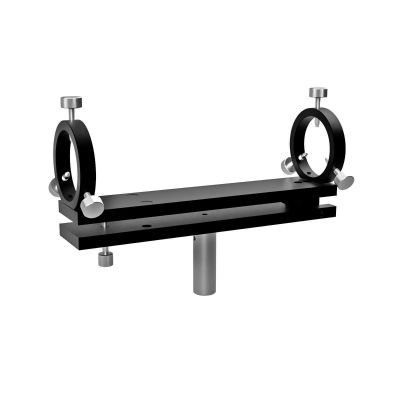

Cylindrical Laser Mount for 240mm length with Tilt Adjust

LAH-2

Holders for He-Ne lasers. The six screws can be used to adjust the height and angle of the mounted laser tube.

More Information
Name	Cylindrical Laser Mount for 240mm length with Tilt Adjust
Weight	0.9100kgs
Guide	Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	After beam adjustment, make sure that the laser is fixed securely with the six fixing screws. Looseness in one screw will cause displacement in the optical axis or vibration.
Image Label	Cylindrical Laser Mount for 240mm length with Tilt Adjust
Length A	240mm
Compatible Laser Diameter	φ18 - φ54mm
Length A	240mm
Adjustment Range Tilt	±2.4°
Resolution /Tilt	about 0.3°/rotation

In stock

SKU

LAH-2

$307.00

Holders for He-Ne lasers. The six screws can be used to adjust the height and angle of the mounted laser tube.
