Prism Holders

KKD - PLH

Prism Holders
In stock
SKU
KKD - PLH

Starting at $83.00

Designed to hole cubed optics or right angle prisms. All four polished surfaces of a cubed prism can be used with these mounts.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Delivery Price Add to cart
i
Prism Holder
KKD-40PHRO
2 weeks
$403.00
Compatible Optics Dimensions □5 - □26mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 2.0°/rotation
Resolution /Tilt about 1.5°/rotation
i
Prism Holder Metric for 12.7 - 32mm Prism

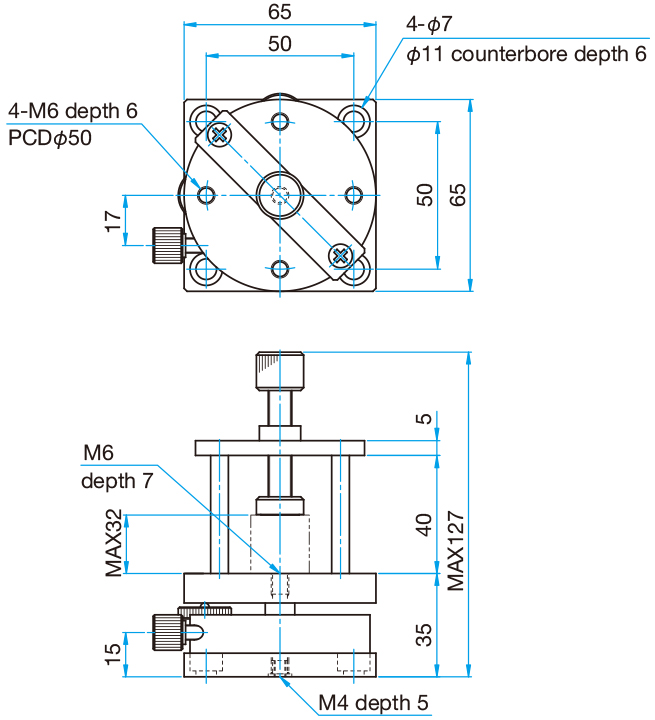

KKD-65PH-EE
6-12 weeks
$478.00
Compatible Optics Dimensions □12.7 - □32mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 1.7°/rotation
Resolution /Tilt about 1.0°/rotation
i
Prism Holder
PLH-40
6-12 weeks
$112.00
Compatible Optics Dimensions □5 - □26mm
Adjustment Range /Rotation -
Adjustment Range /Tilt -
Resolution /Rotation -
Resolution /Tilt -
i
Prism Holder for 5 - 26mm Prism
KKD-40PH
2 weeks
$391.00
Compatible Optics Dimensions □5 - □26mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 2.0°/rotation
Resolution /Tilt about 1.5°/rotation
i
Prism Holder for 5 - 26mm

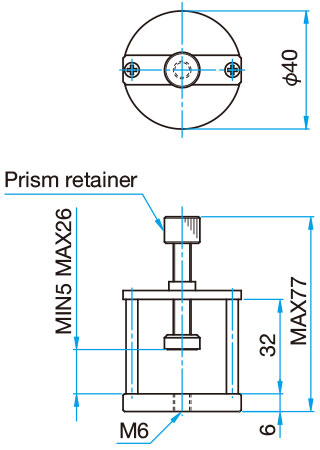

PLH-40-N
6-12 weeks
$102.00
Compatible Optics Dimensions □5 - □26mm
Adjustment Range /Rotation -
Adjustment Range /Tilt -
Resolution /Rotation -
Resolution /Tilt -
i
Prism Holder
KKD-60PHRO
2 weeks
$490.00
Compatible Optics Diameter □10 - □32mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 1.7°/rotation
Resolution /Tilt about 1.0°/rotation
i
Prism Holder Inch for 12.7 - 32m Prism

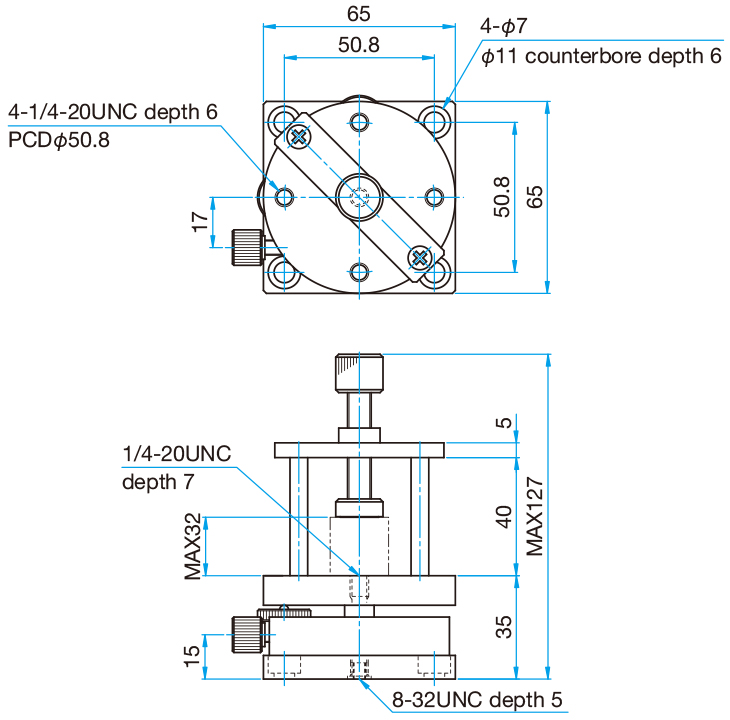

KKD-65PH-UU
in stock
$478.00
Compatible Optics Dimensions □12.7 - □32mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 1.7°/rotation
Resolution /Tilt about 1.0°/rotation
i
Prism Holder
PLH-60
2 weeks
$150.00
Compatible Optics Dimensions □10 - □32mm
Adjustment Range /Rotation -
Adjustment Range /Tilt -
Resolution /Rotation -
Resolution /Tilt -
i
Prism Holder for 10 - 32mm Prism
KKD-60PH
2 weeks
$478.00
Compatible Optics Dimensions □10 - □32mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 1.7°/rotation
Resolution /Tilt about 1.0°/rotation
i
Prism Holder for 10 - 32mm

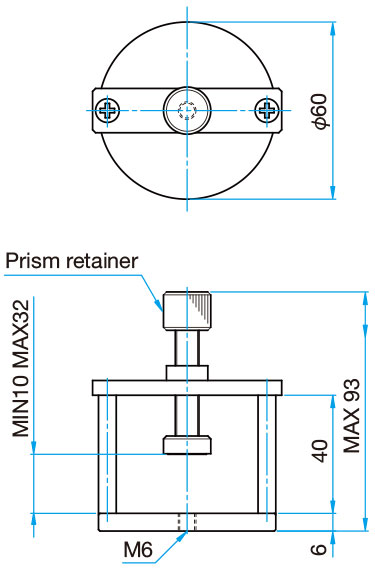

PLH-60-N
2-3 weeks
$139.00
Compatible Optics Dimensions □10 - □32mm
Adjustment Range /Rotation -
Adjustment Range /Tilt -
Resolution /Rotation -
Resolution /Tilt -
i
Prism Holder
KKD-25PHRO
2 weeks
$348.00
Compatible Optics Dimensions < □10mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 0.9°/rotation
Resolution /Tilt about 2.2°/rotation
i
Prism Holder Inch for 5 - 26mm Prism

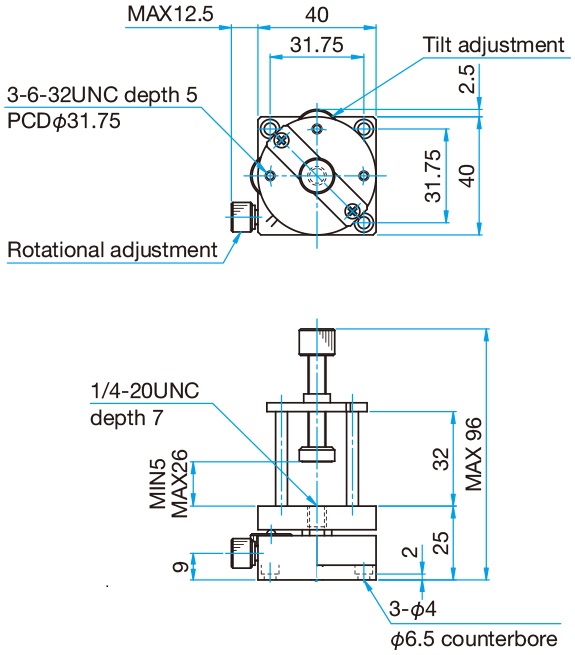

KKD-40PH-UU
6-12 weeks
$391.00
Compatible Optics Dimensions □5 - □26mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 2.0°/rotation
Resolution /Tilt about 1.5°/rotation
i
Prism Holder
PLH-25
2 weeks
$94.00
Compatible Optics Dimensions < □10mm
Adjustment Range /Rotation -
Adjustment Range /Tilt -
Resolution /Rotation -
Resolution /Tilt -
i
Prism Holder for 10mm Prism
KKD-25PH
2 weeks
$336.00
Compatible Optics Dimensions < □10mm
Adjustment Range /Rotation ±3°
Adjustment Range /Tilt ±3°
Resolution /Rotation about 0.9°/rotation
Resolution /Tilt about 2.2°/rotation
i
Prism Holder for up to 10mm

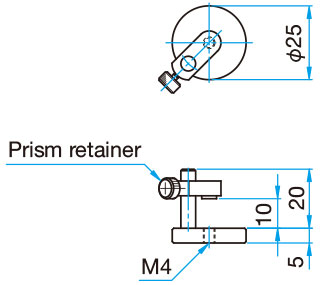

PLH-25-N
2-3 weeks
$83.00
Compatible Optics Dimensions < □10mm
Adjustment Range /Rotation -
Adjustment Range /Tilt -
Resolution /Rotation -
Resolution /Tilt -

You must be logged in to ask questions

◦The KKD series has tip, tilt and yaw rotation for fine adjustment of reflected beams.
◦The clamp screw will not rotate the prism when clamping.
