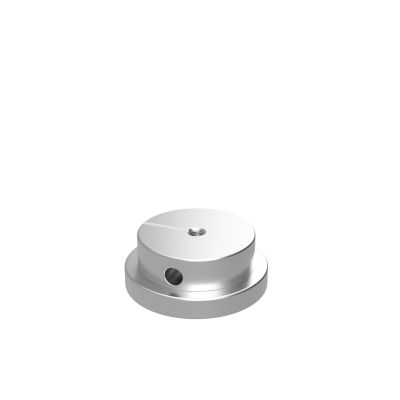

High Vacuum M4 Pedestal Base 12.5mm Height

VPST-12.5

Skip to the beginning of the images gallery

These are low outgassing pedestal bases for vacuum mirror holders and lens holders.

◦ By using in combination with vacuum pedestal clamps (VPSCS), the pedestal bases can be positioned at an arbitrary position.
WEB Reference Catalog Code/W6104
◦ To minimize the outgassing, venting hole and grooving are provided onto screw holes and inset sections.
◦ Please use optional vacuum screws (VSC/VCHS) for mounting M6 installing holders or M4 installing holders.
WEB Reference Catalog Code/W6110
◦ VPSM can connect the vacuum post holders (VRS-12) and can be fixed by pedestal clamps (VPSCS).
WEB Reference Catalog Code/W6100

More Information

More Information
Name	High Vacuum M4 Pedestal Base 12.5mm Height
Weight	0.0650kgs
Guide	To maintain its high cleanness, special vacuum packing for delivery is provided for each component. We will offer custom products based on your requested specifications.
Attention	Please make sure that open the package in a clean environment and do not touch it with your bare hands.
Image Label	High Vacuum M4 Pedestal Base 12.5mm Height
Height A	12.5mm

In stock

SKU

VPST-12.5

$39.51

These are low outgassing pedestal bases for vacuum mirror holders and lens holders.
