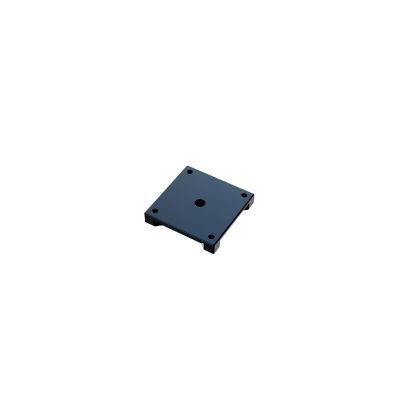

Magnetic Kinematic top plate 40mm metric
REP-40P
Kinematic base composed of a top and bottom plate.The top plate secures holders or other equipment while the bottom plate is fixed to an optical breadboard.
◦Accurate positional repeatability is achieved by matching the holes on the upper plate to the three steel balls embedded in the bottom plate.
◦The top plate can be secured with a strong magnet or a knurled set screw depending on the version.
◦The top plate of the REP magnetic type series (25×25 mm, 40×40 mm, 60×60mm) can be quickly removed our swapped out. It has a repeatability value of less than 100μrad.
◦Always secure the bottom plate with screws.
◦The top plate can be secured with a strong magnet or a knurled set screw depending on the version.
◦The top plate of the REP magnetic type series (25×25 mm, 40×40 mm, 60×60mm) can be quickly removed our swapped out. It has a repeatability value of less than 100μrad.
◦Always secure the bottom plate with screws.
| Name | Magnetic Kinematic top plate 40mm metric |
|---|---|
| Weight | 0.0290kgs |
| Guide |
|
| Attention |
|
| Image Label | Magnetic Kinematic top plate 40mm metric |
| Type | Top Plate only |
In stock
SKU
REP-40P
$39.63
Customize product
Kinematic base composed of a top and bottom plate.The top plate secures holders or other equipment while the bottom plate is fixed to an optical breadboard.
