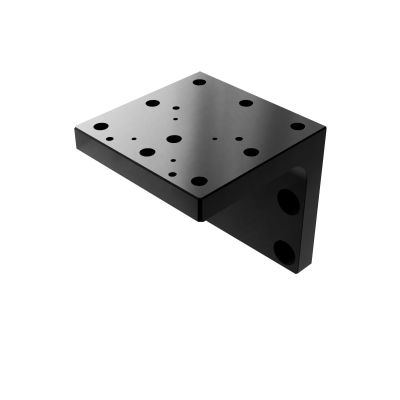

L angle brackets for the TSD-653L-M6
TSD-653LB-M6
×
L angle brackets for the TSD-L series.
| Name | L angle brackets for the TSD-653L-M6 |
|---|---|
| Weight | 0.0800kgs |
| Guide | - |
| Attention |
|
| Image Label | Steel Extended Contact Z Stage 65x65mm Size Metric Threads |
| Moment Stiffness / Pitch | 0.08″/N・cm |
| Moment Stiffness / Yaw | 0.08″/N・cm |
| Moment Stiffness / Roll | 0.05″/N・cm |
| Guide Method | Extended Contact Ball Bearing Guide |
| Travel Accuracy / Pitch | 25″ |
| Travel Accuracy / Yaw | 15″ |
| Running Parallelism | 7μm |
| Max. Moment Capacity / Pitch | 13.2N・m |
| Max. Moment Capacity / Yaw | 10N・m |
| Max. Moment Capacity / Roll | 14.7N・m |
| Primary material | Steel |
| Finish | Super black chrome |
In stock
SKU
TSD-653LB-M6
$66.00
Customize product
L angle brackets for the TSD-L series.
