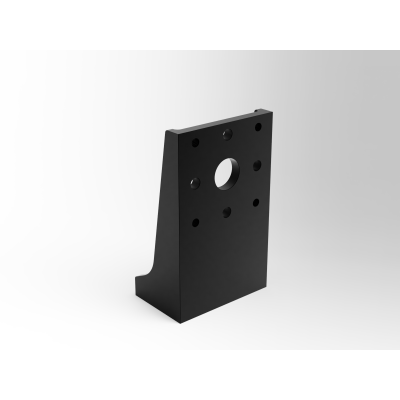

Inch Z bracket for 65mm stages
ZBR-7590UU
Bracket for mounting an X-axis stage at right angles to the mounting surface.
◦X-axis stages can be mounted vertically and used as a Z-axis stage.
◦If the X-axis stage is mounted vertically, attach the stage such that the micrometer head is on the underside.
◦The TSD-SZ series Z-axis stages can be mounted so that the micrometer head is on the topside.
◦If the X-axis stage is mounted vertically, attach the stage such that the micrometer head is on the underside.
◦The TSD-SZ series Z-axis stages can be mounted so that the micrometer head is on the topside.
| Name | Inch Z bracket for 65mm stages |
|---|---|
| Weight | 0.6000kgs |
| Guide |
|
| Attention | - |
| Image Label | Inch Z bracket for 65mm stages |
In stock
SKU
ZBR-7590UU
$77.00
Customize product
Bracket for mounting an X-axis stage at right angles to the mounting surface.
