Cage Mounting Cube

C60-CB

Cage Mounting Cube
In stock
SKU
C60-CB
An adapter that can be attached to the cube joint where the rods are mounted in four directions and an adapter that can be attached to the top or bottom of the joint.
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Name Delivery Price Add to cart
i

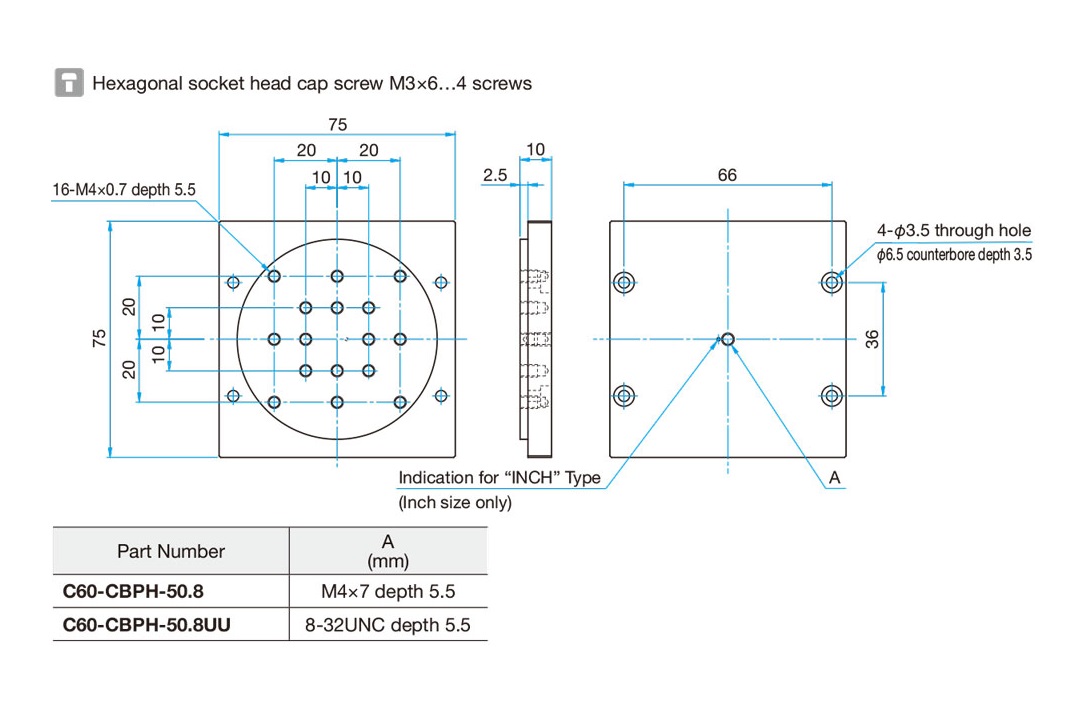

Cage Prism adapter for Cube Joint
C60-CBPH-50.8UU
in stock
$60.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) -
Thougth Hole Diameter -
Guide Rod Mounting Surfaces -
Compatible Mount C60-CB-H50.8
Compatiblefixing screw 8-32 UNC
i
Clamp Plate for Cage Cube Joint
C60-CBCP
2 weeks
$39.00
Primary material Aluminum
Compatible Mount C60-CB-H50.8
Installation Slide from the end of rods
i

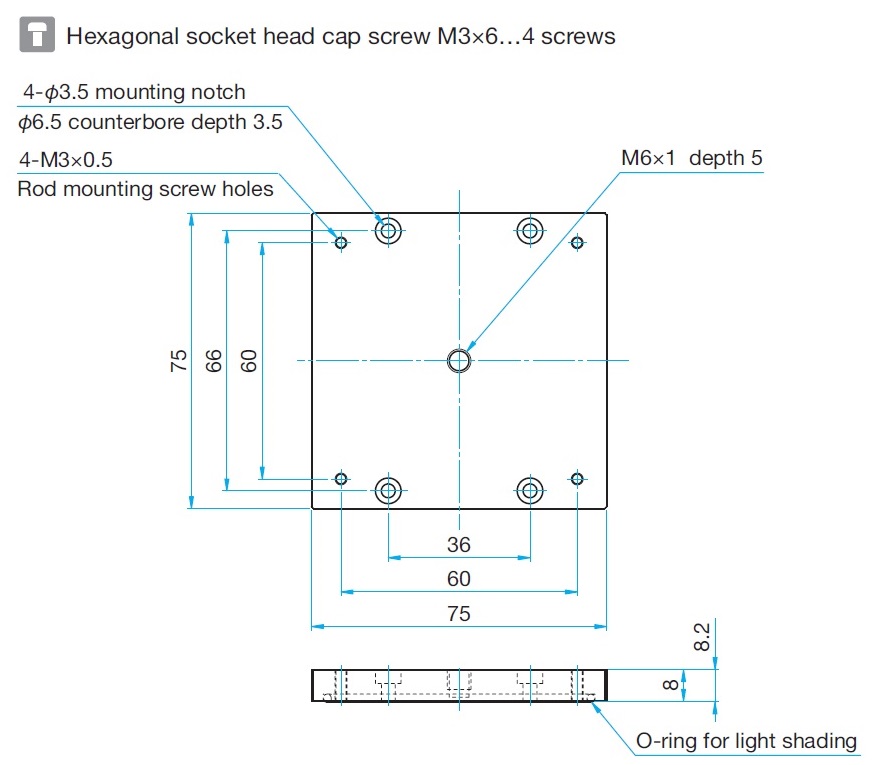

Cage Blank Plate for Cube Joint
C60-CB-BKP
2 weeks
$39.00
Primary material Aluminum
Compatible Mount C60-CB-H50.8
Compatiblefixing screw M6 P1
Installation Slide from the end of rods
i
Cover Plate for Cage Cube with M51.7 X 0.635 Screw Hole
C60-CB-CVP-M51.7
2 weeks
$39.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (60x60mm)
Compatible Mount C60-CB-H50.8
Compatiblefixing screw M51.7 P0.635
Installation Slide from the end of rods
i
Cage Prism adapter for Cube Joint
C60-CBPH-50
2 weeks
$60.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) -
Thougth Hole Diameter -
Guide Rod Mounting Surfaces -
Compatible Mount C60-CB-H50.8
Compatiblefixing screw M4 P0.7
i
Cage Blank Plate for Cube Joint
C60-CB-BKP-UU
2 weeks
$39.00
Primary material Aluminum
Compatible Mount C60-CB-H50.8
Compatiblefixing screw 1/4-20 UNC
Installation Slide from the end of rods
i

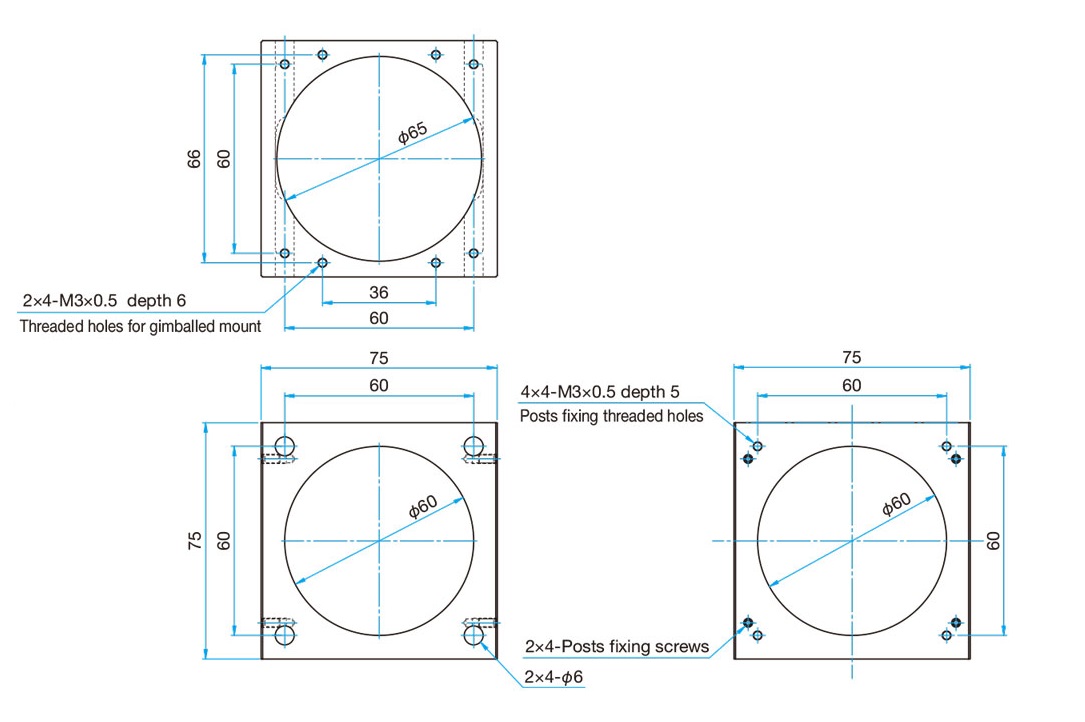

Cage Mounting Cube
C60-CB-H50.8
6-12 weeks
$173.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (60x60mm)
Thougth Hole Diameter φ60mm
Guide Rod Mounting Surfaces 4 faces
Compatible Mount -
Compatiblefixing screw -

You must be logged in to ask questions

◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
