Cage Fixed Optic Mount (Through hole)

C60-BP

Cage Fixed Optic Mount (Through hole)
In stock
SKU
C60-BP

Starting at $60.00

It is a holder for incorporating optical elements such as lenses and filters into the cage system.
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Name Delivery Price Add to cart
i
Cage Fixed Optic Mount (Through hole)
C60-BP-70-50.8UU
2 weeks
$60.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (50x50mm)
Compatible Optics Diameter φ50.8mm
Compatible Optics Thickness 9mm
Clear Aperture φ47mm
Optics fixing method Clamp the optics in between two retaining rings.
Installation Slide from the end of rods
i

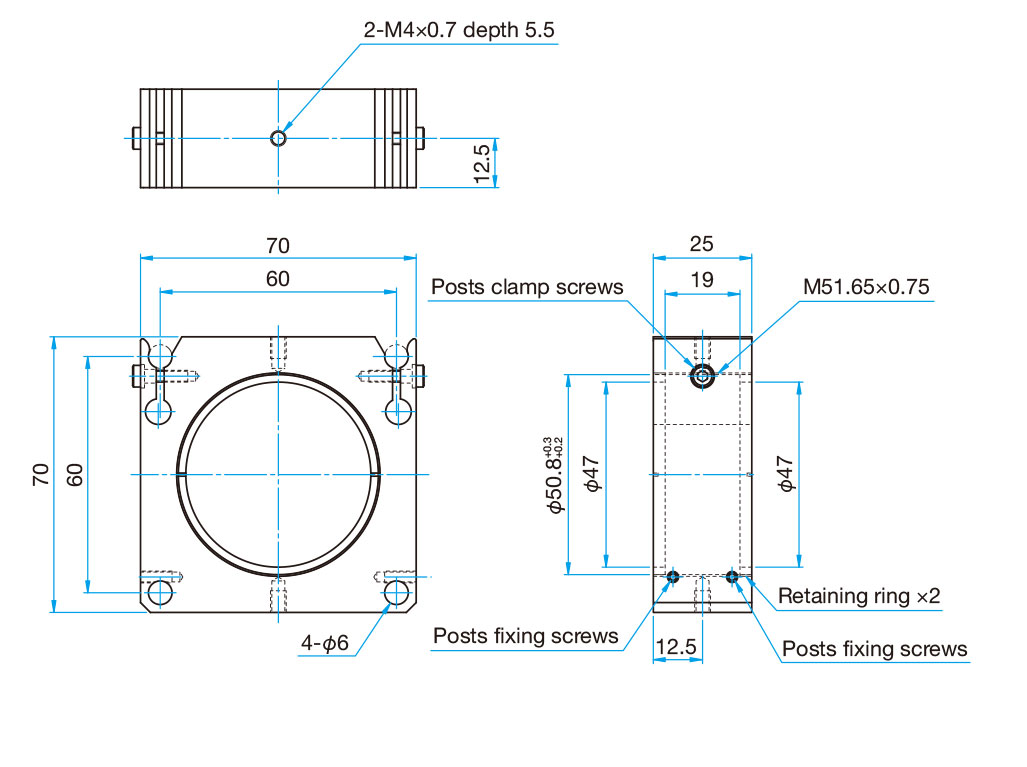

Cage Fixed Optic Mount (Through hole)
C60-BP-70-50.8A
2 weeks
$63.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (50x50mm)
Compatible Optics Diameter φ50.8mm
Compatible Optics Thickness 24mm
Clear Aperture φ47mm
Optics fixing method Clamp the optics in between two retaining rings.
Installation Slide from the end of rods
i

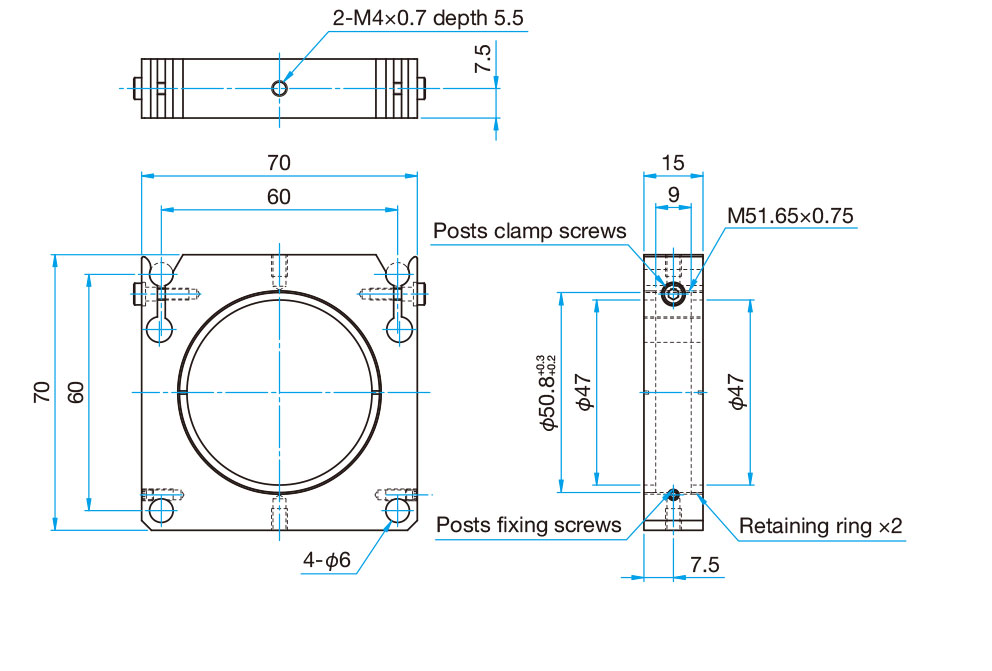

Cage Fixed Optic Mount (Through hole)
C60-BP-70-50.8
2 weeks
$60.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (50x50mm)
Compatible Optics Diameter φ50.8mm
Compatible Optics Thickness 9mm
Clear Aperture φ47mm
Optics fixing method Clamp the optics in between two retaining rings.
Installation Slide from the end of rods
i

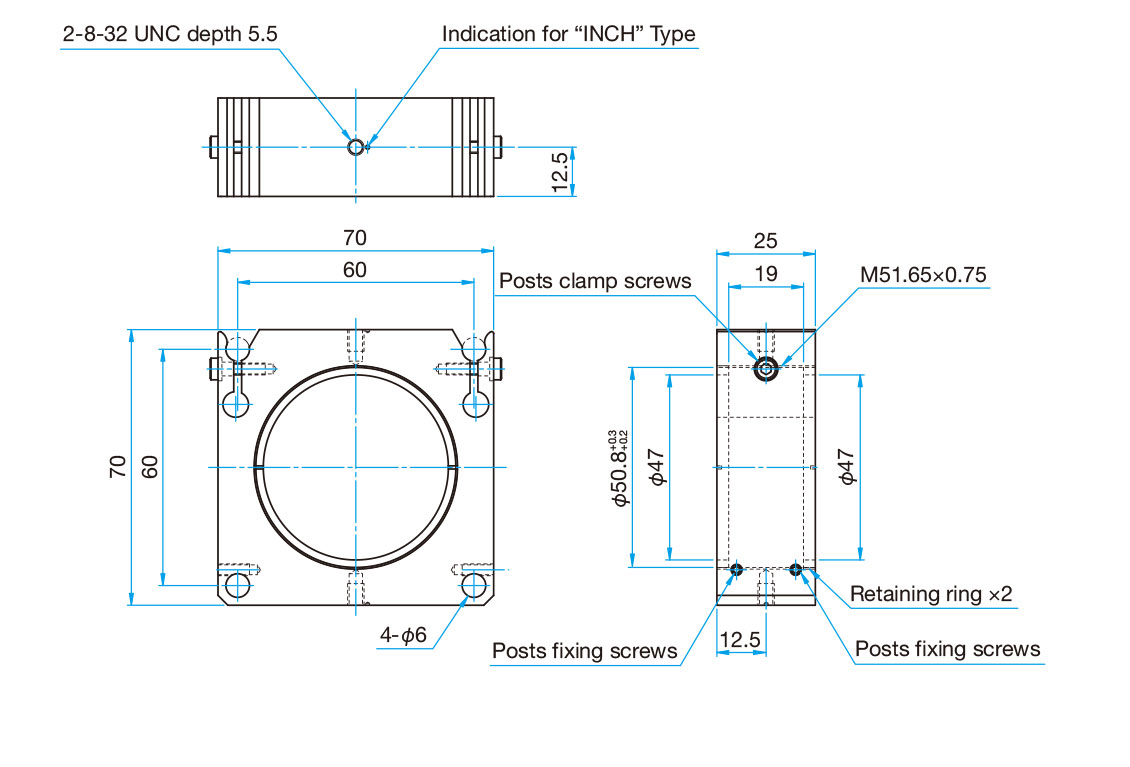

Cage Fixed Optic Mount (Through hole)
C60-BP-70-50.8AUU
2 weeks
$63.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (50x50mm)
Compatible Optics Diameter φ50.8mm
Compatible Optics Thickness 24mm
Clear Aperture φ47mm
Optics fixing method Clamp the optics in between two retaining rings.
Installation Slide from the end of rods

You must be logged in to ask questions

◦ Four dedicated rods are used in the cage system to attach various kinds of components along the optical axis.
There are three types of cage system available. Two types uses dedicated rod of dia. 6mm. One of them is P30 mm corner arrangement (C30 series) and another one is P60 mm corner arrangement (C60 series).
In addition, the one uses a dedicated rod of dia. 4mm is available for P16 mm corner arrangement to miniaturize.
