CageCore Mount for C Mount Camera

C30-CU-SCMP

CageCore Mount for C Mount Camera
In stock
SKU
C30-CU-SCMP
It is a holder for incorporating the camera and camera lens attached to the C-mount Adapter into the core unit for microscopy
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Name Delivery Price Add to cart
i
CageCore Mount for C Mount Camera
C30-CU-SCMP-H32
2 weeks
$150.00

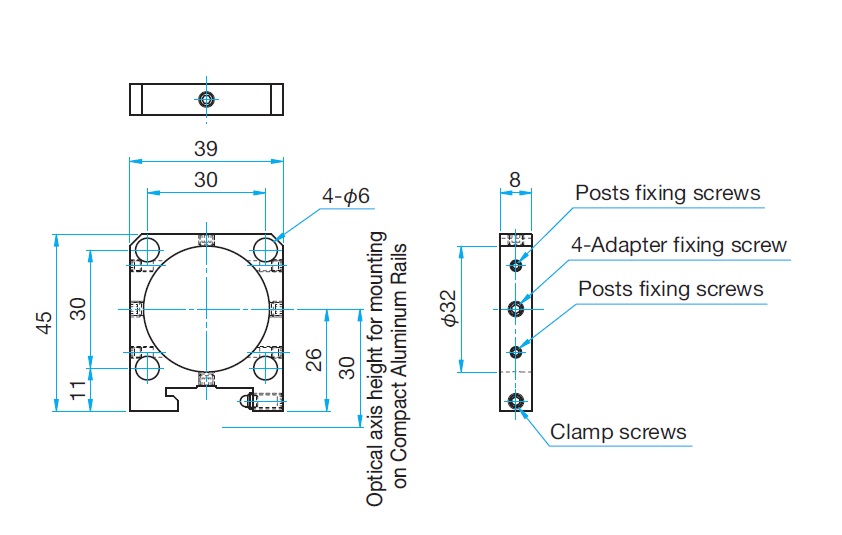

Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Adapters Diameter φ30mm
Adjustment Range ±1mm

You must be logged in to ask questions

◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera.
