Cage Prism Holders

C30-PLH-PAD

Cage Prism Holders
In stock
SKU
C30-PLH-PAD
It is a holder for incorporating a prism such as a cube beam splitter into the cage system.
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶ If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶ Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶ When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Name Delivery Price Add to cart
i
Cage Prism Holder

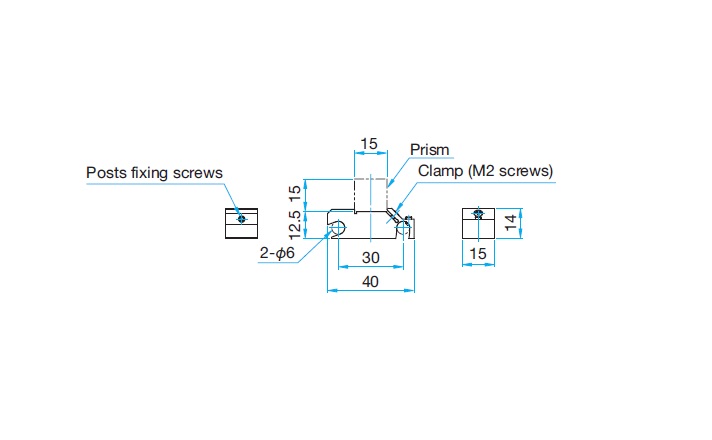

C30-PAD-15
in stock
$71.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Optics dimensions □15mm
Clear Aperture 15x13.6mm
Installation Slots fit from the side of rods
i
Cage Prism Holder

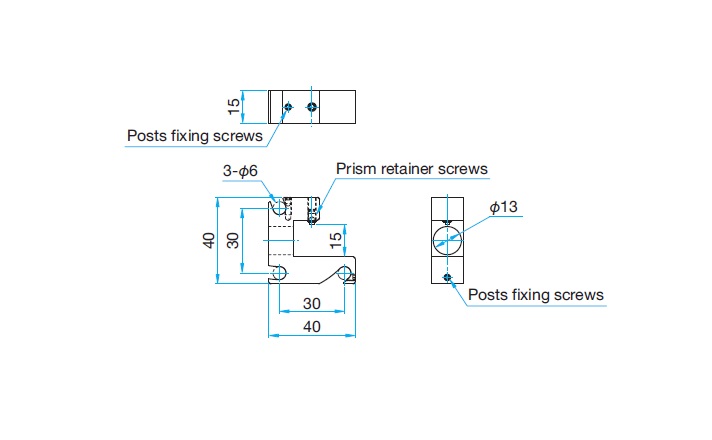

C30-PLH-15
in stock
$33.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Optics dimensions □15mm
Clear Aperture φ13mm
Installation Slots fit from the side of rods
i
Cage Prism Holder
C30-PLH-20
in stock
$38.00
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Optics dimensions □20mm
Clear Aperture φ17mm
Installation Slots fit from the side of rods

You must be logged in to ask questions

◦ Four dedicated rods are used in the cage system to attach various kinds of components along the optical axis.
There are three types of cage system available. Two types uses dedicated rod of dia. 6mm. One of them is P30 mm corner arrangement (C30 series) and another one is P60 mm corner arrangement (C60 series).
In addition, the one uses a dedicated rod of dia. 4mm is available for P16 mm corner arrangement to miniaturize.
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera.
