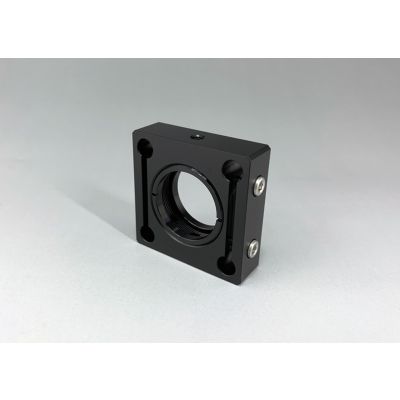

Cage High Stability Plate

C30-HSP-25.4

A holding plate that is more stable than standard post with fixing screws by clamping with the slotting and the bolts.

More Information
Name	Cage High Stability Plate
Weight	0.0330kgs
Guide	Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog. For consultation of optical system using cage system please contact Sales.
Attention	If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders. Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder. When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material	Aluminum
Guide Rod Diameter (Spaceing between rod)	φ6mm (30x30mm)
Compatible Optics Diameter	φ25.4mm
Compatible Optics Thickness	- 6mm
Clear Aperture	φ22mm
Installation	Slide from the end of rods

In stock

SKU

C30-HSP-25.4

$42.00

A holding plate that is more stable than standard post with fixing screws by clamping with the slotting and the bolts.
