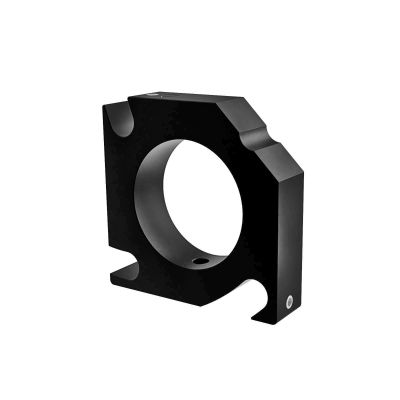

Cage Fixed Objective Lens Holder (Slot in)

C30-SLHO-M26

3d-simple-product
It is a holder for incorporating the objective lens into the cage system.
◦ The holder plate of cage system has two types of addon methods which are side-in type and slide-in type. The side-in type can attach and detach the holder plate while the cage system are built. The slide-in type must be built in the cage system beforehand, but it is possible to firmly fix the holder plate to the cage (rod).
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera.



More Information
Name Cage Fixed Objective Lens Holder (Slot in)
Weight 0.0250kgs
Guide
  • Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog.
  • For consultation of optical system using cage system please contact Sales.
Attention
  • If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
  • Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
  • When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Image Label Cage Fixed Objective Lens Holder (Slot in)
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Compatible Mounting Screw Size M26 P0.706
Installation Slots fit from the side of rods
In stock
SKU
C30-SLHO-M26
$22.44

Delivery in : in stock

It is a holder for incorporating the objective lens into the cage system.
