Cage Blank Plate

C30-BKP-B

Cage Blank Plate
In stock
SKU
C30-BKP-B
Cage Blank Plate is used when the standard product listed on our web site cannot be fit with the customer's system.
It can be processed any size or shape of the holes.

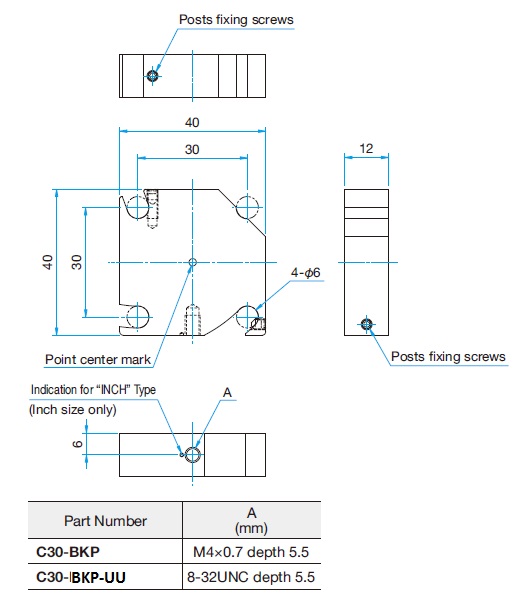

Rod fixing screws are supplied for the 4 through holes which dia. 6mm of rod for Cage(C30-RO-**: dia. 6mm).
custom product
Customize product
Filters
Enabled filters :
Remove all filters

Attention ▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Guide ▶Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog.
▶For consultation of optical system using cage system please contact Sales.

Name Delivery Price Add to cart
i
Cage Blank Plate
C30-BKP-UU
2 weeks
$19.38
Primary material Aluminum
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
i
Cage Blank Plate
C30-BKP
2 weeks
$19.38
Guide Rod Diameter (Spaceing between rod) φ6mm (30x30mm)
Weight 0.044kg

You must be logged in to ask questions

◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
