Cage Alignment Holder

Cage Alignment Holder

SKU : C30-AP

In stock
SKU
C30-AP

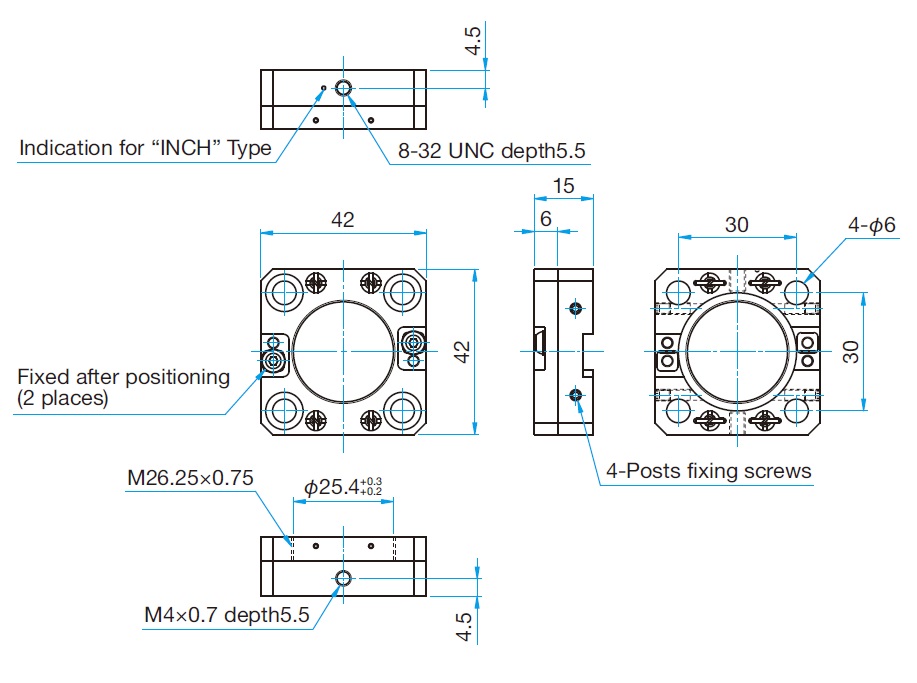

A plate that holds the optics of dia. 12.7mm in the 30mm Cage assembly and enables coarse position adjustment (movable range dia.1mm) in the plane. Loosen the two screws of the movable plate and adjust the position of the movable plate, then manually tighten and fix it.

Attention ▶If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
▶Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
▶When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.

Name Delivery Price Add to cart
Cage Alignment Holder
C30-AP-25.4
5-10 days
$95.00

You must be logged in to ask questions

◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
