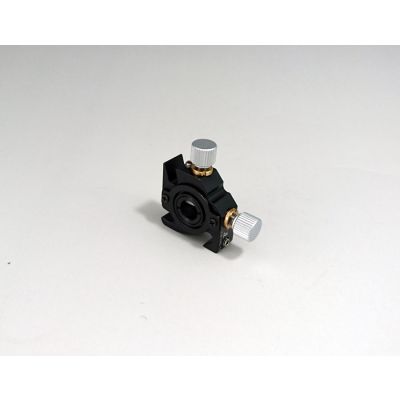

Cage Two-axis Optic Holder
There are three types of cage system available. Two types uses dedicated rod of dia. 6mm. One of them is P30 mm corner arrangement (C30 series) and another one is P60 mm corner arrangement (C60 series).
In addition, the one uses a dedicated rod of dia. 4mm is available for P16 mm corner arrangement to miniaturize.
◦ The holder plate can slide through the rod (cage) in the direction of the optical axis. Even without using the stage, it can easily adjust focus on the lens and camera.
|Name||Cage Two-axis Optic Holder|
|Image Label||Cage Two-axis Optic Holder|
|Guide Rod Diameter (Spaceing between rod)||φ4mm (16x16mm)|
|Compatible Optics Diameter||φ10mm|
|Compatible Optics Thickness||1 - 6mm|
|Adjustment Range (X,Y)||φ1mm|
|Installation||Slots fit from the side of rods|
