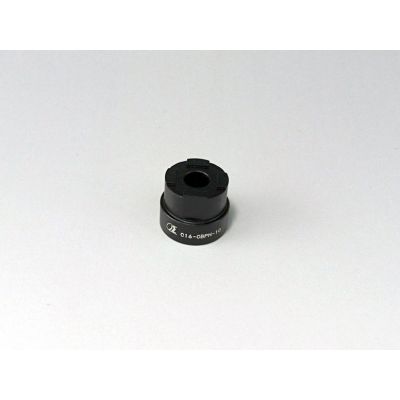

Cage Prism adapter for Cube Joint
C16-CBPH-10
Cage Prism adapter for cube joint is used with the Cube(C16-CB-H1.7) for 16mm Cage system. Cage Prism adapter can assemble prism or cube type optics which height is less than or equal to 10mm with the holder which clear aperture of 16mm. Cage Clamping plate for cube joint is used to fix the optics.
◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
| Name | Cage Prism adapter for Cube Joint |
|---|---|
| Weight | 0.0050kgs |
| Guide |
|
| Attention |
|
| Primary material | Aluminum |
| Products Name | Cage Prism adapter for Cube Joint |
| Guide Rod Diameter (Spaceing between rod) | - |
| Thougth Hole Diameter | - |
| Guide Rod Mounting Surfaces | - |
| Distance to center | - |
| Compatible Optics Diameter | □10mm |
| Clear Aperture | φ6.4mm |
| Compatible Mount | C16-CB-H12.7 |
| Compatiblefixing screw | - |
In stock
SKU
C16-CBPH-10
$13.26
Customize product
Cage Prism adapter for cube joint is used with the Cube(C16-CB-H1.7) for 16mm Cage system. Cage Prism adapter can assemble prism or cube type optics which height is less than or equal to 10mm with the holder which clear aperture of 16mm. Cage Clamping plate for cube joint is used to fix the optics.
