Cage Clamping plate for Cube Joint

C16-CBCP

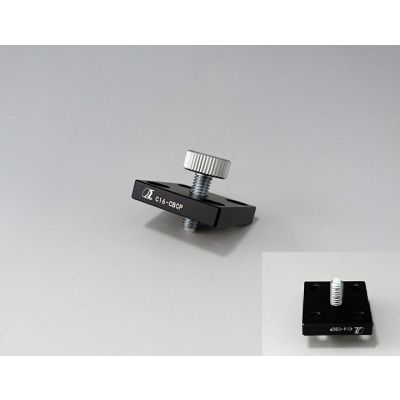

Cage Clamping plate for cube joint can be directly fixed with the Cube(C16-CB-H1.7) for 16mm Cage system. Cage Clamping plate has resin on top of the screw and the optical components can be held without damage.
◦ Mirror holders are supported by four (or three) rods (cages). In addition, the mirror holder can split the optical axis and the cage into two, or fold it to 90 degrees.
◦ The cage system has no distinction of up, down, left and right. Therefore, it is possible to place the holder in various orientations, which is convenient for constructing a three-dimensional optical system.
More Information
Name Cage Clamping plate for Cube Joint
Weight 0.0100kgs
Guide
  • Please contact our Sales for methods to fix the cage system to other equipment and parts not included in the WEB catalog.
  • For consultation of optical system using cage system please contact Sales.
Attention
  • If the rod is tightened too tightly or if the tightening force is greatly different depending on the location, the rod may not fit in other holders.
  • Initially fix the rod lightly, after building the optical system, please tighten so that the force that fixes the rod is even in each holder.
  • When configuring a large optical system or a long optical system, it may become distorted or become unstable due to vibration.
Primary material Aluminum
Products Name Cage Clamping plate for Cube Joint
Guide Rod Diameter (Spaceing between rod) -
Thougth Hole Diameter -
Guide Rod Mounting Surfaces -
Distance to center -
Compatible Optics Diameter -
Clear Aperture -
Compatible Mount C16-CB-H12.7
Compatiblefixing screw -
In stock
SKU
C16-CBCP
$29.58

Delivery in : 2 weeks

Cage Clamping plate for cube joint can be directly fixed with the Cube(C16-CB-H1.7) for 16mm Cage system. Cage Clamping plate has resin on top of the screw and the optical components can be held without damage.
