Silent Ultrasonic Mirror Mounts

PKA-MH

Silent Ultrasonic Mirror Mounts
In stock
SKU
PKA-MH
These actuators have high resolution and high-speed.
Provies a compact shape with silent and remove activation.
Position can be held with the friction even when the power is OFF.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Travel Diameter Delivery Price Add to cart
i

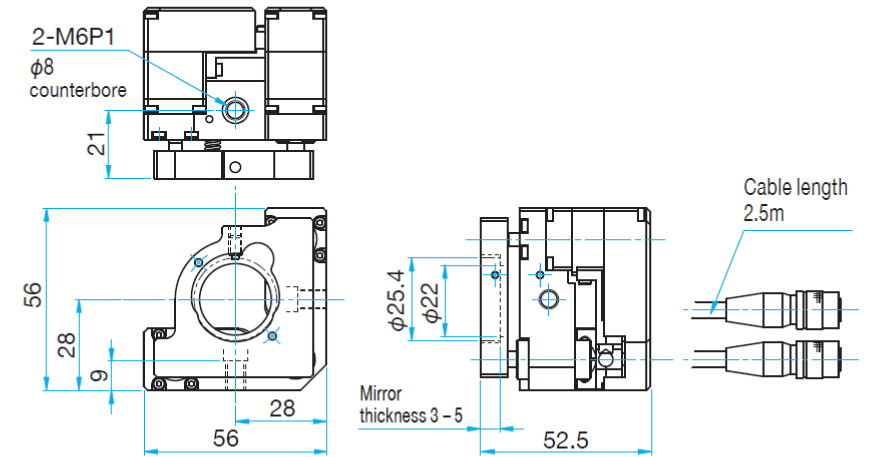

25.4mm Silent Ultrasonic Mirror Mount
PKA-25.4MH
±3° 25mm - 25.4mm
6-12 weeks
$1,917.60
Compatible Optics Diameter φ25.4mm
Compatible Optics Thickness 3 - 5mm
Number of Adjustable Axes 2 axes
Travel ±3°
Resolution 0.5″ or lower
i

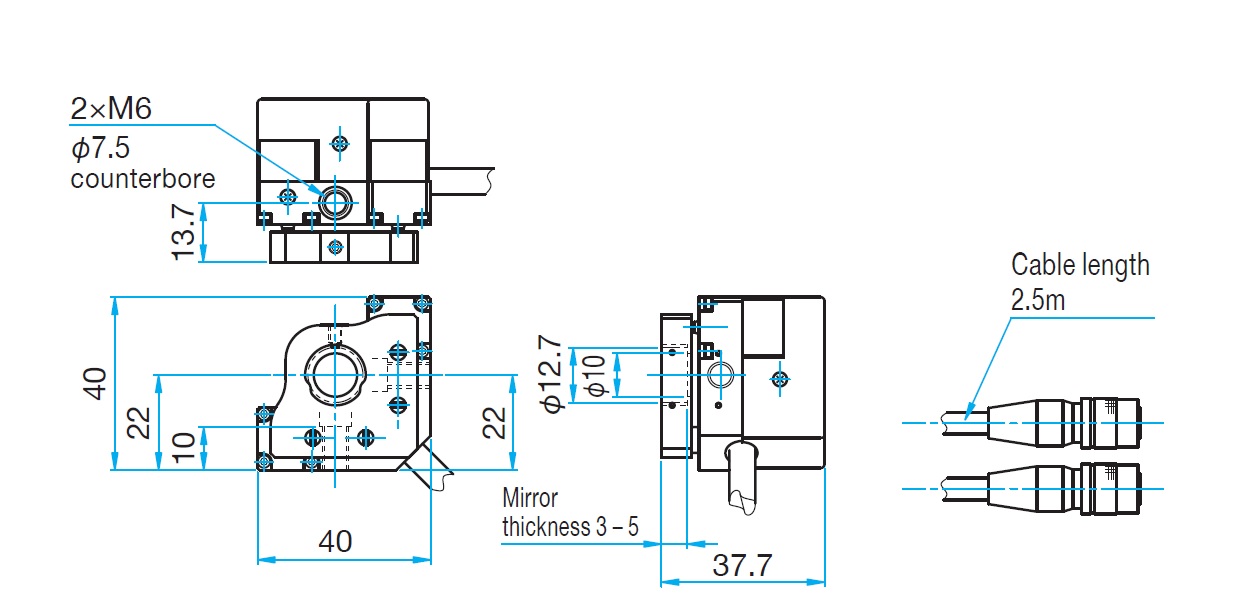

12.7mm Silent Ultrasonic Mirror Mount
PKA-12.7MH
±2.5° 12.7mm
6-12 weeks
$2,346.00
Compatible Optics Diameter φ12.7mm
Compatible Optics Thickness 3 - 5mm
Number of Adjustable Axes 2 axes
Travel ±2.5°
Resolution 2.0″ or lower

You must be logged in to ask questions

◦ These compact ultrasonic actuators are mounted on our high stability mirror holders (MHG series).
