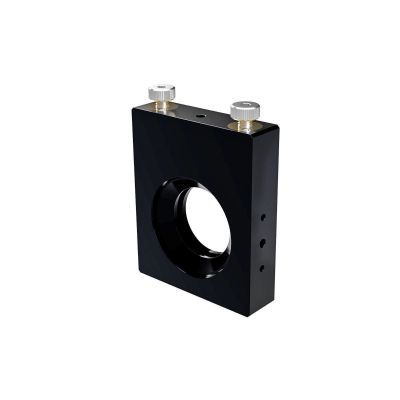

Vertical Control Gimballed Beamsplitter Holder with Knobs for 30mm Optic
BSHL-30-2
×
These vertical holders are ideal for small spacers due to their thin design and vertical adjustment. Holders can be positioned close to each other reducing optical system size.
◦There are two types, one is fitted with knobs on top (BSHL-2), and the other is without knobs and adjusted by hex wrench (BSHL-TF).
◦This product provides large clear aperture of transmitted beam even if beamsplitter is placed at 45 degrees.
◦The gimbal design maintains the center position of mirror even when fine adjusted.
◦Adjustment screws can be fixed with the clamp screws on the back of the mounts.
◦Two M4 mounting holes are also provided on both sides to mount the holder horizontally.
◦This product provides large clear aperture of transmitted beam even if beamsplitter is placed at 45 degrees.
◦The gimbal design maintains the center position of mirror even when fine adjusted.
◦Adjustment screws can be fixed with the clamp screws on the back of the mounts.
◦Two M4 mounting holes are also provided on both sides to mount the holder horizontally.
| Name | Vertical Control Gimballed Beamsplitter Holder with Knobs for 30mm Optic |
|---|---|
| Weight | 0.1300kgs |
| Guide |
|
| Attention |
|
| Image Label | Vertical Control Gimballed Beamsplitter Holder with Knobs for 30mm Optic |
| Diameter | 30mm |
| Knobs | With Knobs |
| Compatible Optics Diameter | φ30mm |
| Compatible Optics Thickness | 3 - 5mm |
| 45° Incidence Reflected Beam Diameter | φ19mm |
| 45° Incidence Central Transmission Beam Diameter | φ14.74mm |
| Fine-Adjustment Range /Tilt | ±1.2° |
| Fine-Adjustment Range /Rotation | ±1.2° |
| Fine Adjustment Resolution /Tilt | 0.34°/rotation |
| Fine Adjustment Resolution /Rotation | 0.4°/rotation |
