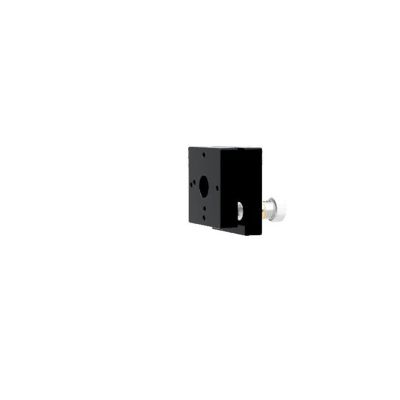

Small Kinematic Mirror Holder for 25mm Optic

MMHN-25BN

Rectangular mirrors can be bonded to the front plate and circular mirrors can be bonded or held with the mirror adapters (MKAD).

More Information
Name	Small Kinematic Mirror Holder for 25mm Optic
Weight	0.0300kgs
Guide	25mm square aluminum flat mirrors (TFA-25S05-10) are available. WEB Reference Catalog Code/W3403
Attention	The adjustment is not along the reflective surface of the mirror. Gimbal mirror holders (MHAN) have the adjustment along the reflective surface the mirrors. WEB Reference Catalog Code/W4010
Image Label	Small Kinematic Mirror Holder for 25mm Optic
Compatible Optics Diameter	＜□25mm/＜φ25mm
Fine-Adjustment Range /Tilt	±5°
Fine-Adjustment Range /Rotation	±5°
Resolution /Tilt	about 0.9°/rotation
Resolution /Rotation	about 0.9°/rotation

In stock

SKU

MMHN-25BN

$98.00

Rectangular mirrors can be bonded to the front plate and circular mirrors can be bonded or held with the mirror adapters (MKAD).
