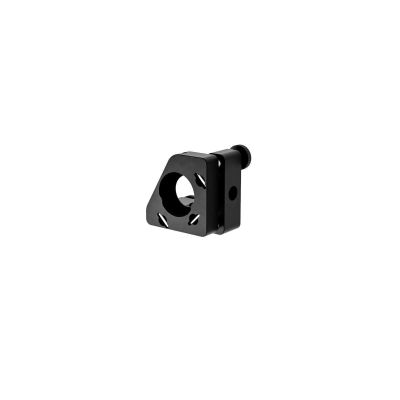

Kinematic Mirror Holder Thin for 12.7mm Mirror
MHGT-12.7
×
A new design based on the Kinematic mirror holders (MHG) resulting in reduced prices. These holders are best for experiments using many simple mirror holders or for use in production devices.
◦a small footprint offers more adjustment space compared to the MHG series.
◦Mirrors are held are at three points along the side to distribute the stress on the mirror evenly.
◦The thin frame and setscrew mounting method insure that large clear apertures can be obtained with reflected or transmitted light.
◦Mirrors are held are at three points along the side to distribute the stress on the mirror evenly.
◦The thin frame and setscrew mounting method insure that large clear apertures can be obtained with reflected or transmitted light.
| Name | Kinematic Mirror Holder Thin for 12.7mm Mirror |
|---|---|
| Weight | 0.0130kgs |
| Guide |
|
| Attention |
|
| Diameter | 12.7mm |
| Mounting Thread | 8-32/M4 Thru |
| Compatible Optics Diameter φA | φ12.7mm |
| Compatible Optics Thickness | 3 - 5mm |
| Though hole φB | φ10mm |
| Number of Adjustment Axes | 2 points |
| Adjustment Range /Tilt | ±3° |
| Adjustment Range /Rotation | ±3° |
| Resolution /Tilt | about 0.74°/rotation |
| Resolution /Rotation | about 0.74°/rotation |
In stock
SKU
MHGT-12.7
$49.00
Customize product
A new design based on the Kinematic mirror holders (MHG) resulting in reduced prices. These holders are best for experiments using many simple mirror holders or for use in production devices.
