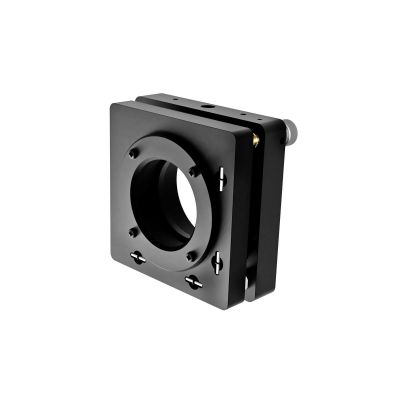

High Rigidity Mirror Holders for 50.8mm Mirror
MHL-50.8S
×
This is a mirror holder with high rigidity by attaching leaf springs to the kinematic structure. It is a holder that suppresses the angle of the mirror from changing due to shock and vibration.
| Name | High Rigidity Mirror Holders for 50.8mm Mirror |
|---|---|
| Weight | 0.5600kgs |
| Guide | - |
| Attention | - |
| Image Label | High Rigidity Mirror Holders for 50.8mm Mirror |
| Compatible Optics Diameter | φ50.8mm |
| Compatible Optics Thickness | 4 - 16mm |
| Number of Adjustment Axis | 2 |
| Adjustment Range /Tilt | ±3° |
| Adjustment Range /Rotation | ±3° |
| Resolution Tilt | 0.2°/Rotation |
| Resolution Rotation | 0.2°/Rotation |
In stock
SKU
MHL-50.8S
$368.00
Customize product
This is a mirror holder with high rigidity by attaching leaf springs to the kinematic structure. It is a holder that suppresses the angle of the mirror from changing due to shock and vibration.
