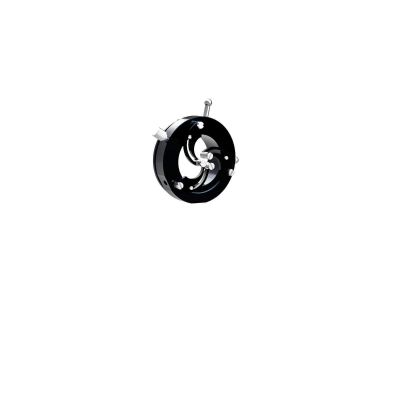

Caliper Variable Lens Holder Inch for 5 - 25mm Diameter Lens

SLH-25-UU

Skip to the beginning of the images gallery

Designed to hold lenses with a range of diameters at a consistent center height. Best used in applications where different diameter lenses are swapped out often.

Details

◦The three jaws of the holder will clamp edge of the lenses with spring pressure.
◦Squeezing the levers towards each other will open the three jaws. Releasing the levers will close the jaws.
◦The position of the three jaws is locked by tightening the clamp.

More Information

More Information
Name	Caliper Variable Lens Holder Inch for 5 - 25mm Diameter Lens
Weight	0.0500kgs
Guide	Post length can be changed. If the length of post is specified at the time of purchase, this product will be delivered after replacing posts. Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	Thin lenses may tilt and fall out from the holders when they are held with excessive spring pressure. ALHN lens holders are recommended when precise lens manipulation is required. WEB Reference Catalog Code/W4016-2
Image Label	Caliper Variable Lens Holder Inch for 5 - 25mm Diameter Lens
Compatible Optics Diameter	φ5 - φ25.4mm
Compatible Optics Thickness	1 - 3mm

In stock

SKU

SLH-25-UU

$209.00

Designed to hold lenses with a range of diameters at a consistent center height. Best used in applications where different diameter lenses are swapped out often.

Caliper Variable Lens Holder Inch for 5 - 25mm Diameter Lens
