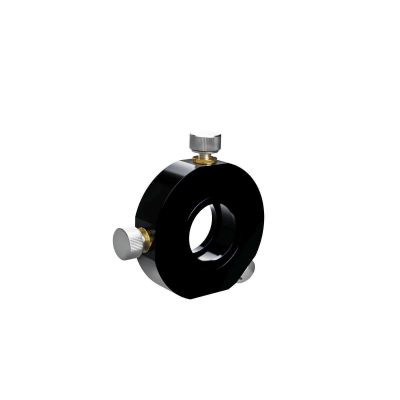

Two-axis Lens Holder with M4 Threads for 30mm

LHCM-30-EE

Skip to the beginning of the images gallery

Two-axis lens holders with compact centering mechanism. The compact centering adjustment mechanism makes a low optical axis easy to accommodate . Can be used for adjusting the focus point of a laser beam or the direction of a collimated beam.

Details

More Information

More Information
Name	Two-axis Lens Holder with M4 Threads for 30mm
Weight	0.2300kgs
Guide	Can be mounted on a dovetail stage or a micrometer adjustment stage to allow focus adjustment. Contact our Sales Division for recommendations regarding appropriate stages. Three-axis lens holders (ALHN-3RO) with high resolution lens centering adjustment and lockable adjusters are also available. WEB Reference Catalog Code/W4016-2 Five-axis lens holders (ALHN-5RO) with additional tip and tilt adjustments are also available. WEB Reference Catalog Code/W4016-2 Post length can be changed by specifying the post length when you place an order. Replacement of the post is free of charge, but we may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	The adjustment mechanism may not work properly when something heavy other than a lens is mounted.
Image Label	Two-axis Lens Holder with M4 Threads for 30mm
Diameter	30mm
Mounting Thread	M4
Compatible Optics Diameter φA	φ30mm
Compatible Optics Thickness t	2 - 12mm
Clear Aperture φB	φ27mm
Optical Axis Height C	30mm
Centering Adjustment Range	φ3mm

In stock

SKU

LHCM-30-EE

$183.00

Two-axis Lens Holder with M4 Threads for 30mm
