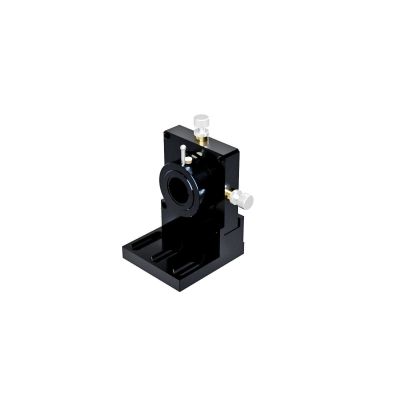

25.4mm Diameter, XYZ Adjustable Lens Mount, Slotted-Base Mounting
ALHN-25.4-3
×
Multi-axis lens holders are a convenient way to align a lens to the optical axis. These plate-type holders mount securely and provide a stable low optical axis.
| Name | 25.4mm Diameter, XYZ Adjustable Lens Mount, Slotted-Base Mounting |
|---|---|
| Weight | 0.4900kgs |
| Guide |
|
| Attention |
|
| Image Label | Three-axis Lens Holder with Base for 25.4mm Optic |
| Diameter | 25.4mm |
| Number of Control Axes | 3 Axes |
| Mounting Thread | Slotted Base, M6/ or 1/4-20 Screw |
| Compatible Optics Diameter | φ25mm |
| Compatible Optics Thickness | 3 - 28mm |
| Optic Thread | M26.25 P0.75 |
| Centering Adjustment Range | φ6mm |
| Centering Adjustment Resolution | 0.25mm/rotation |
| Tilt Range /Tilt | |
| Tilt Range /Rotation | |
| Tilt Resolution /Tilt | |
| Tilt Resolution /Rotation | |
| Focus Adjustment Range | ±3mm |
In stock
SKU
ALHN-25.4-3
$510.00
Customize product
Multi-axis lens holders are a convenient way to align a lens to the optical axis. These plate-type holders mount securely and provide a stable low optical axis.
