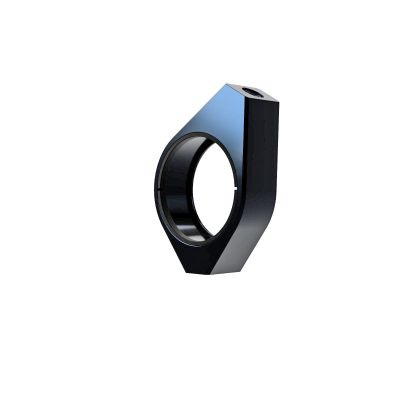

Thin Frame Fixed Lens Holder for 40mm Diameter Optic

LHF-40S-N

Skip to the beginning of the images gallery

A lens holder that can be used in two ways, Metric (M6) and Inch (1/4-20 UNC). It is convenient to use in an experiment where metrics and inch parts are mixed.

Details

More Information

More Information
Name	Thin Frame Fixed Lens Holder for 40mm Diameter Optic
Weight	0.1100kgs
Guide	Post length can be changed by specifying the post length when you place an order. Replacement of the post is free of charge, but we may charge the difference in price depending on the length. Contact our Sales Division for more information. Adapter nuts (AND) are available to convert M6 female threads to M4 or 8-32UNC female threads. WEB Reference Catalog Code/W6078
Attention	Aluminum retaining rings are suitable for clean rooms or high power laser applications (RR-**). WEB Reference Catalog Code/W4017-1
Image Label	Thin Frame Fixed Lens Holder for 40mm Diameter Optic
Diameter	40mm
Mounting Thread	M6 & 1/4-20UNC
Compatible Optics Diameter φA	φ40mm
Clear Aperture φB	φ37mm
C	M40.85 P0.75
D	30mm
E	7mm
F	18mm
φG	φ46mm
H	66mm
I	38.1mm
Compatible Optics Thickness	2 - 13mm

In stock

SKU

LHF-40S-N

$38.47

A lens holder that can be used in two ways, Metric (M6) and Inch (1/4-20 UNC). It is convenient to use in an experiment where metrics and inch parts are mixed.

Thin Frame Fixed Lens Holder for 40mm Diameter Optic
