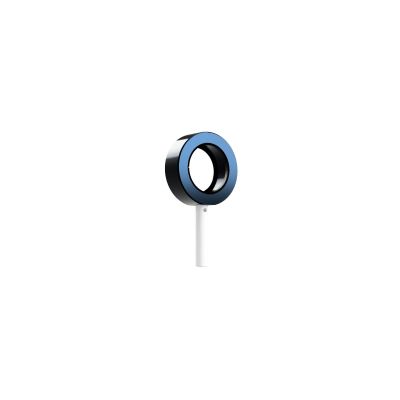

Fixed Lens Holder with Rod for 50mm Diameter Thick Optic

LHF-50A

Skip to the beginning of the images gallery

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.

Details

More Information

More Information
Name	Fixed Lens Holder with Rod for 50mm Diameter Thick Optic
Weight	0.1700kgs
Guide	Post length can be changed by specifying the post length when you place an order. Replacement of the post is free of charge, but we may charge the difference in price depending on the length. Contact our Sales Division for more information. Thin frame lens holders (LHF-S). WEB Reference Catalog Code/W4515 Lens holder with rotation center adjustment (LHCM) is also available. WEB Reference Catalog Code/W4512-2
Attention	-
Image Label	Fixed Lens Holder with Rod for 50mm Diameter Thick Optic
Diameter	50mm
Mounting Thread	M6
Compatible Optics Diameter φA	φ50mm
Compatible Optics ThicHness	4 - 18mm
Clear Aperture φB	φ45mm
C	M50.85 P0.75
Optical Axis Height D	35mm
E	10mm
φG	φ72mm
F	24mm

In stock

SKU

LHF-50A

$62.00

It can firmly fix from a thin single lens to a thick achromatic lens. Since the outer diameter of the holder is large, it has an effect on blocking stray light.

Fixed Lens Holder with Rod for 50mm Diameter Thick Optic
