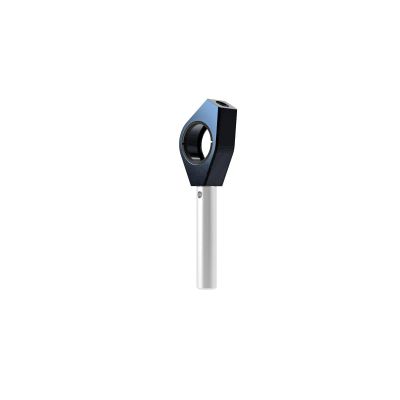

Fixed Lens Holder
LHF-25S
A lens holder that can be used in two ways, Metric (M6) and Inch (1/4-20 UNC). It is convenient to use in an experiment where metrics and inch parts are mixed.
◦To set the optical axis height from the baseplate to round figures such as 55mm or 60mm, replace posts with post stands (PST-**).
WEB Reference Catalog Code/W6039
◦This item can firmly hold thin single lenses as well as thick lenses such as achromatic lenses.
◦Best suited when the holders are in close proximity and when setting up a optical system such as folded beam go through the right next to the lens holder because the outer diameter of the holder is small.
◦Resin retaining ring fix lenses securely without scratching them. (Resin ring is not attached.)
WEB Reference Catalog Code/W6039
◦This item can firmly hold thin single lenses as well as thick lenses such as achromatic lenses.
◦Best suited when the holders are in close proximity and when setting up a optical system such as folded beam go through the right next to the lens holder because the outer diameter of the holder is small.
◦Resin retaining ring fix lenses securely without scratching them. (Resin ring is not attached.)
| Name | Fixed Lens Holder |
|---|---|
| Weight | 0.2000kgs |
| Guide |
|
| Attention |
|
| Compatible Optics Diameter φA | φ25mm |
| Clear Aperture φB | φ22mm |
| C | M25.85 P0.75 |
| D | 25mm |
| E | 6mm |
| F | 16mm |
| φG | φ32mm |
| H | 50mm |
| I | 25.4mm |
| Compatible Optics Thickness | 2 - 11mm |
In stock
SKU
LHF-25S
$47.00
Customize product
A lens holder that can be used in two ways, Metric (M6) and Inch (1/4-20 UNC). It is convenient to use in an experiment where metrics and inch parts are mixed.
